240/340, No Clutch Apply




Diagnostic Routines

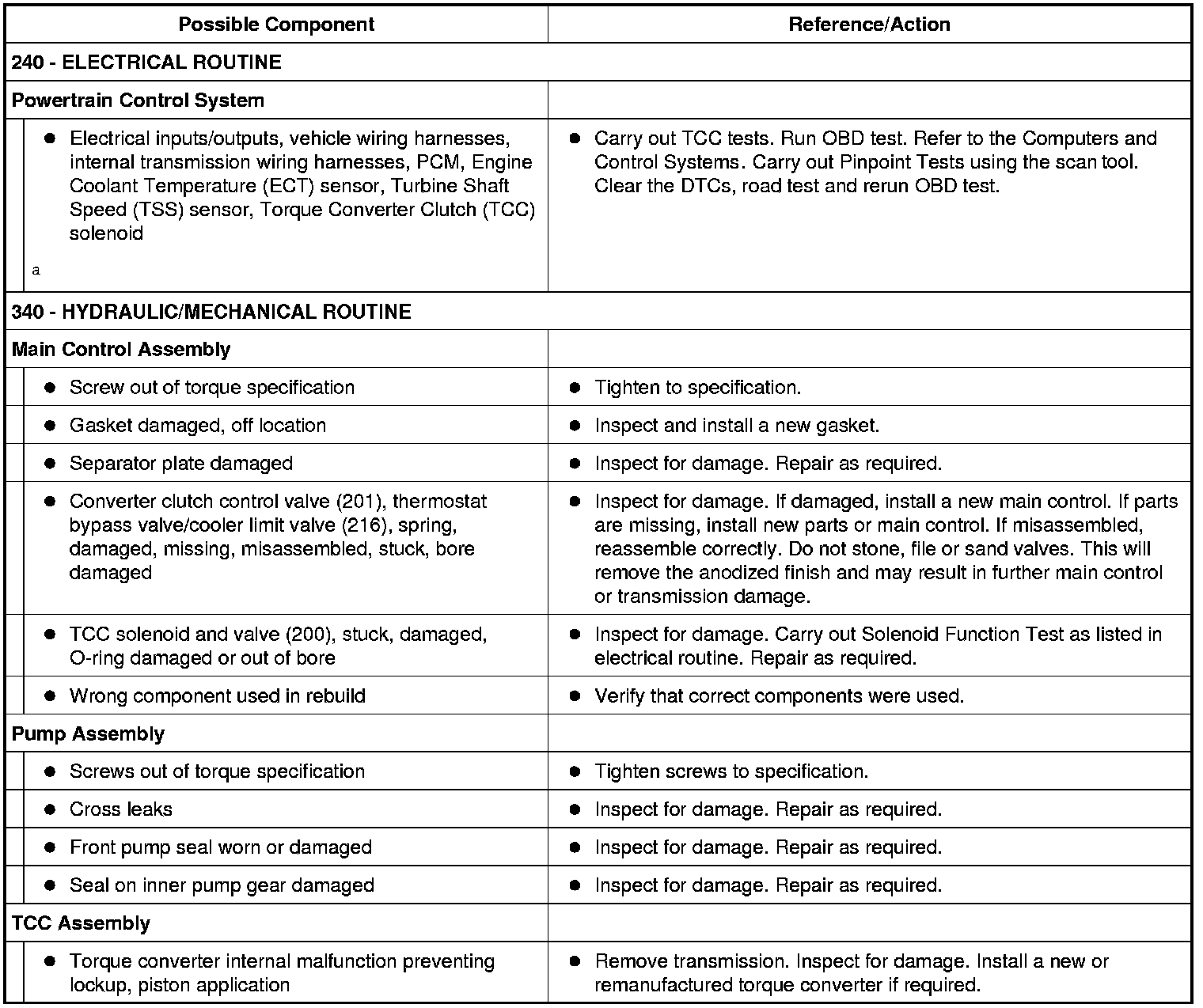

Torque Converter Clutch Operation Concerns: No Clutch Apply





a Also refer to Routine No. 265. 265/365, Failure Mode Effects Management - Harsh Engagements and Shifts
