Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

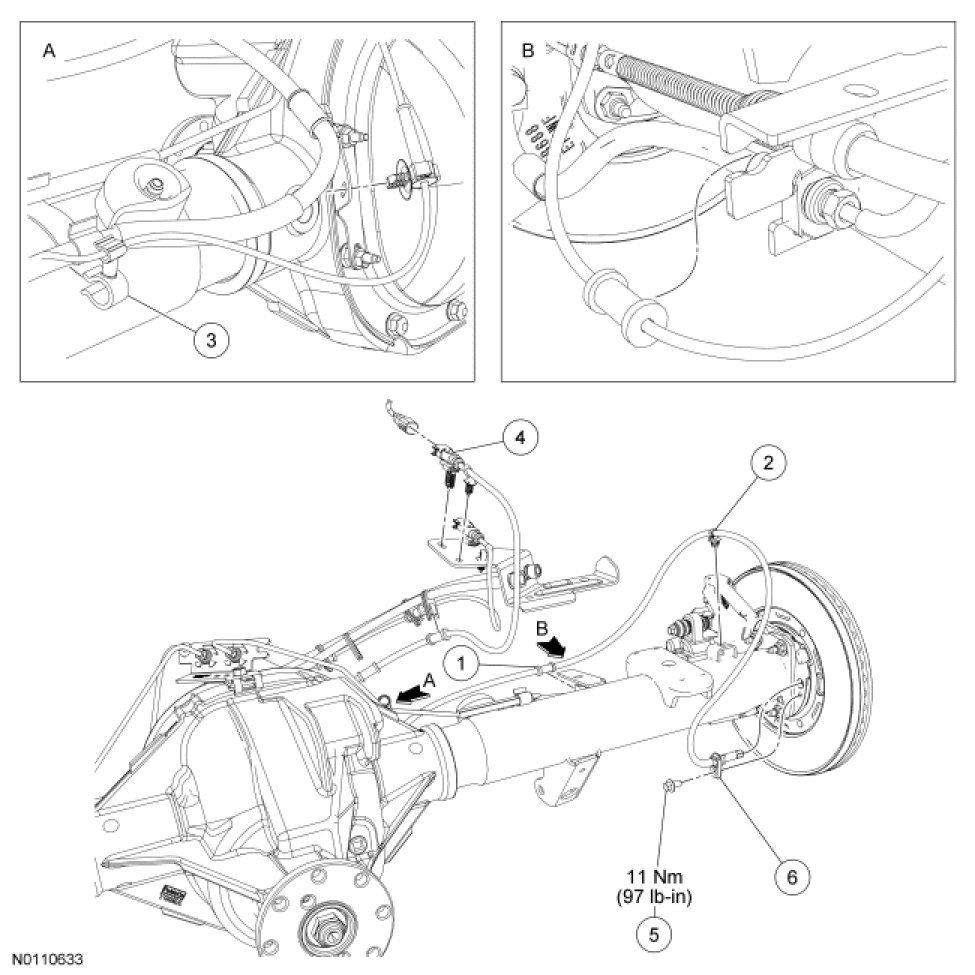

Right Rear Wheel Speed Sensor

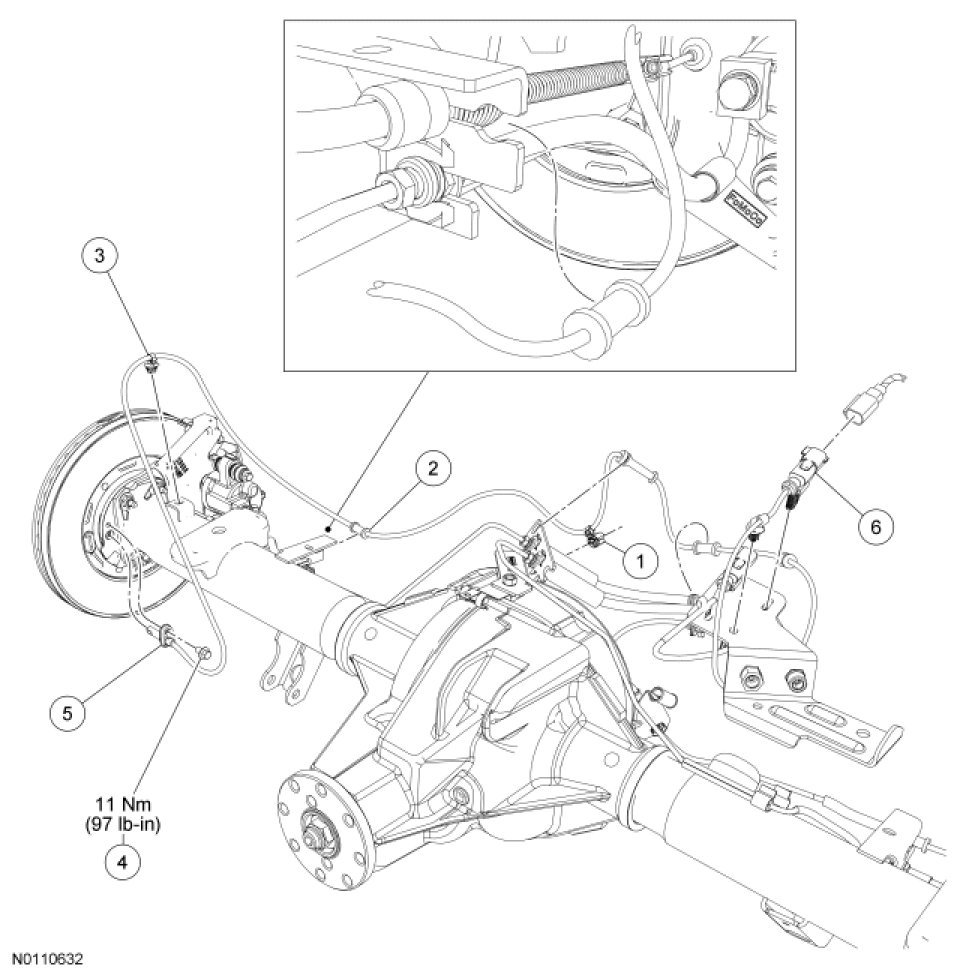

Left Rear Wheel Speed Sensor









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the wheel speed sensor electrical connector.

3. If the right rear wheel speed sensor is being removed, remove the wheel speed sensor pin-type retainer from the axle housing.

4. If the left rear wheel speed sensor is being removed, remove the wheel speed sensor retaining clip from the parking brake cable.

5. Disconnect the wheel speed sensor grommet retainers and pin-type retainers.

6. Remove the wheel speed sensor bolt.
- To install, tighten to 11 Nm (97 lb-in).

7. Remove the wheel speed sensor.

8. To install, reverse the removal procedure.
