Safety Belt Buckle and Pretensioner - 40 Percent




Safety Belt Buckle and Pretensioner - 40 Percent

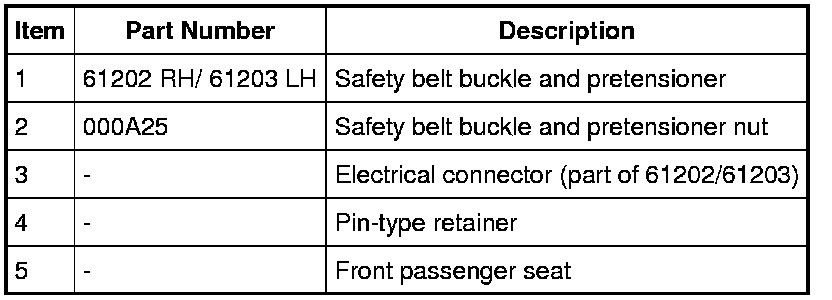

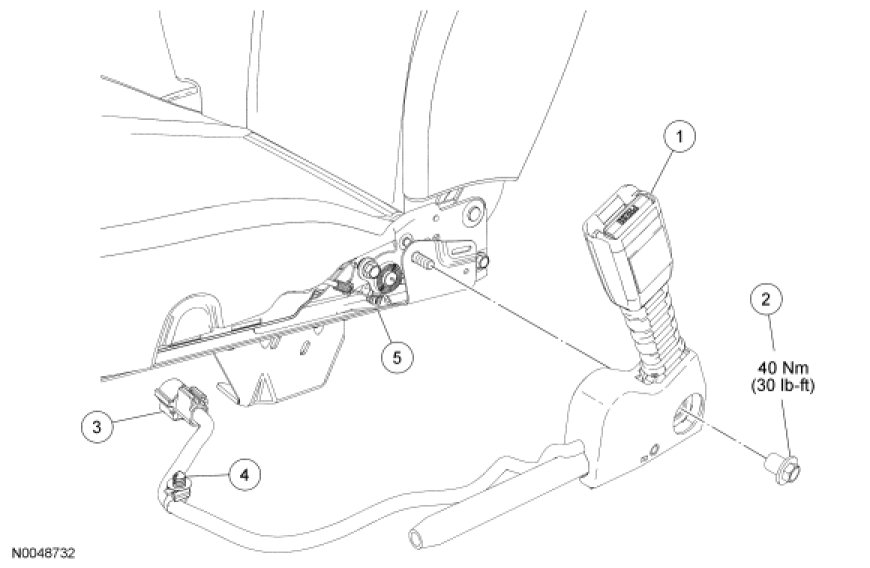

NOTE: RH shown, LH similar.











Removal and Installation

WARNING: After any crash, all of the following safety belt assemblies and attaching hardware must be inspected to verify correct function:
- Retractors
- Buckles
- Belt tension sensor (BTS) (if equipped)
- Front safety belt buckle support assemblies (slide bar) (if equipped)
- Safety belt shoulder belt height adjusters (if equipped)
- Child safety seat tether bracket assemblies
- Automatic locking retractor (ALR) feature for child safety seats (passenger seating positions only)

If any safety belt assembly is damaged, does not operate correctly or does not pass all of the Functional Tests in the Diagnosis and Testing information, a new safety belt assembly must be installed. If any safety belt assembly attaching areas are damaged or distorted, the sheet metal must be restored to its original structural integrity and new safety belt assembly and attaching hardware must be installed. Failure to install new safety belt assemblies and attaching hardware may increase the risk of serious personal injury or death in a crash.

After any crash that results in deployment of the driver and/or front outboard passenger safety belt pretensioners, new driver and/or front outboard passenger safety belt systems (including retractors, buckles and height adjusters) must be installed. Failure to install new safety belt systems increases the risk of serious personal injury or death in a crash.

WARNING: Never disassemble or tamper with safety belt buckle/retractor pretensioners or adaptive load limiting retractors or probe the electrical connectors. Failure to follow this instruction may result in the accidental deployment of the safety belt pretensioners or adaptive load limiting retractors which increases the risk of serious personal injury or death.

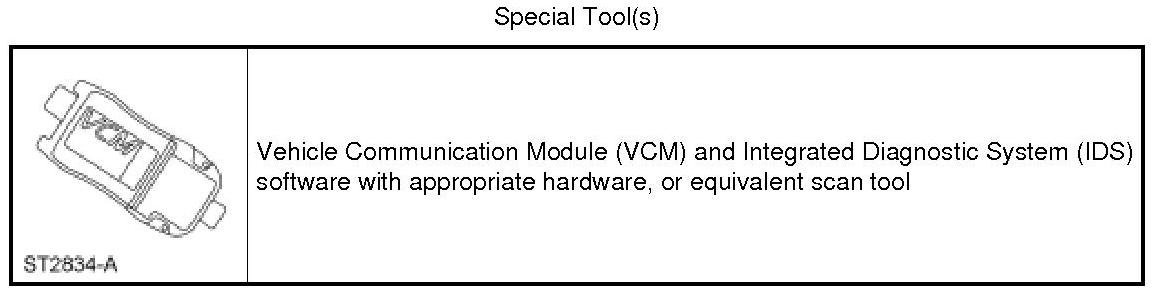

NOTICE: To prevent system failure, it is necessary to carry out the Occupant Classification Sensor (OCS) system reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset command.

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

All seats

1. Remove the front seat. For additional information, refer to Seating Seat.

2. Release the inboard side rear hook-and-loop strip.





3. Release the inboard side bottom J-clip for access to the safety belt buckle pretensioner.

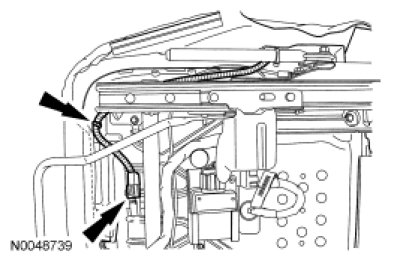

4. Detach the pin-type retainers and safety belt buckle pretensioner wire harness from the seat cushion frame.
- For driver seat, disconnect the seat position sensor electrical connector.

- For passenger seat, disconnect the safety belt buckle pretensioner electrical connector.

- Note wire harness routing for correct installation.





5. Remove the nut and safety belt buckle pretensioner.
- To install, tighten to 40 Nm (30 lb-ft).

6. To install, reverse the removal procedure.

7. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time. For additional information, refer to Seating Seat.

Passenger seat

8. WARNING: Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before carrying out the System Reset. Failure to follow these instructions may result in incorrect operation of the occupant classification sensor (OCS) system and increases the risk of serious personal injury or death in a crash.

WARNING: Install a new occupant classification sensor (OCS) system service kit as a complete assembly. Never install only part of the kit components. Failure to follow this instruction may result in incorrect operation of the OCS system and increases the risk of serious personal injury or death in a crash.

NOTICE: To prevent system failure, the following precautions must be taken before carrying out the Occupant Classification Sensor (OCS) system reset:
- Make sure the voltage to the Occupant Classification System Module (OCSM) is above 8 volts and less than 18 volts.
- Make sure the OCS system is not at a temperature below 6°C (42°F) or above 36°C (97°F) when initiating the OCS system reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature within the limits, 6°C to 36°C (42°F to 97°F) for a minimum of 30 minutes.
- Make sure nothing is present on the passenger seat before carrying out the OCS system reset and nothing is placed on the seat during the process.
- Make sure a minimum 8-second time period has passed after cycling the ignition switch ON before the carrying out the OCS system reset process.


Carry out the Occupant Classification Sensor (OCS) system reset.

9. If the first system reset attempt was unsuccessful, carry out a thorough visual inspection of the following and repair any concerns found.
- OCS system connector and wiring for damage

- Pressure sensor hose for kinks and/or damage

- Seat-related wiring harness and body wiring harness terminals and connectors for damage

10. NOTE: The ignition switch must be cycled after the OCS system reset.

Carry out a second OCS system reset. If the second attempt is unsuccessful, install a new OCS system service kit. For additional information, refer to Occupant Classification System in Supplemental Restraint System Service and Repair.

11. Prove out the SRS as follows:
Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS fault is detected, the air bag warning indicator will:
- fail to light.
- remain lit continuously.
- flash.
The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.
Clear all continuous DTCs from the RCM and Occupant Classification System Module (OCSM) using a scan tool.

All seats

12. Check the active restraint system for correct operation. For additional information, refer to Safety Belt System Principles Of Operation.
