Home >> Ford >> 2011 >> Ranger 2WD L4-2.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Door Switch >> Diagrams >> C820 Door Ajar Switch, Passenger Side Rear

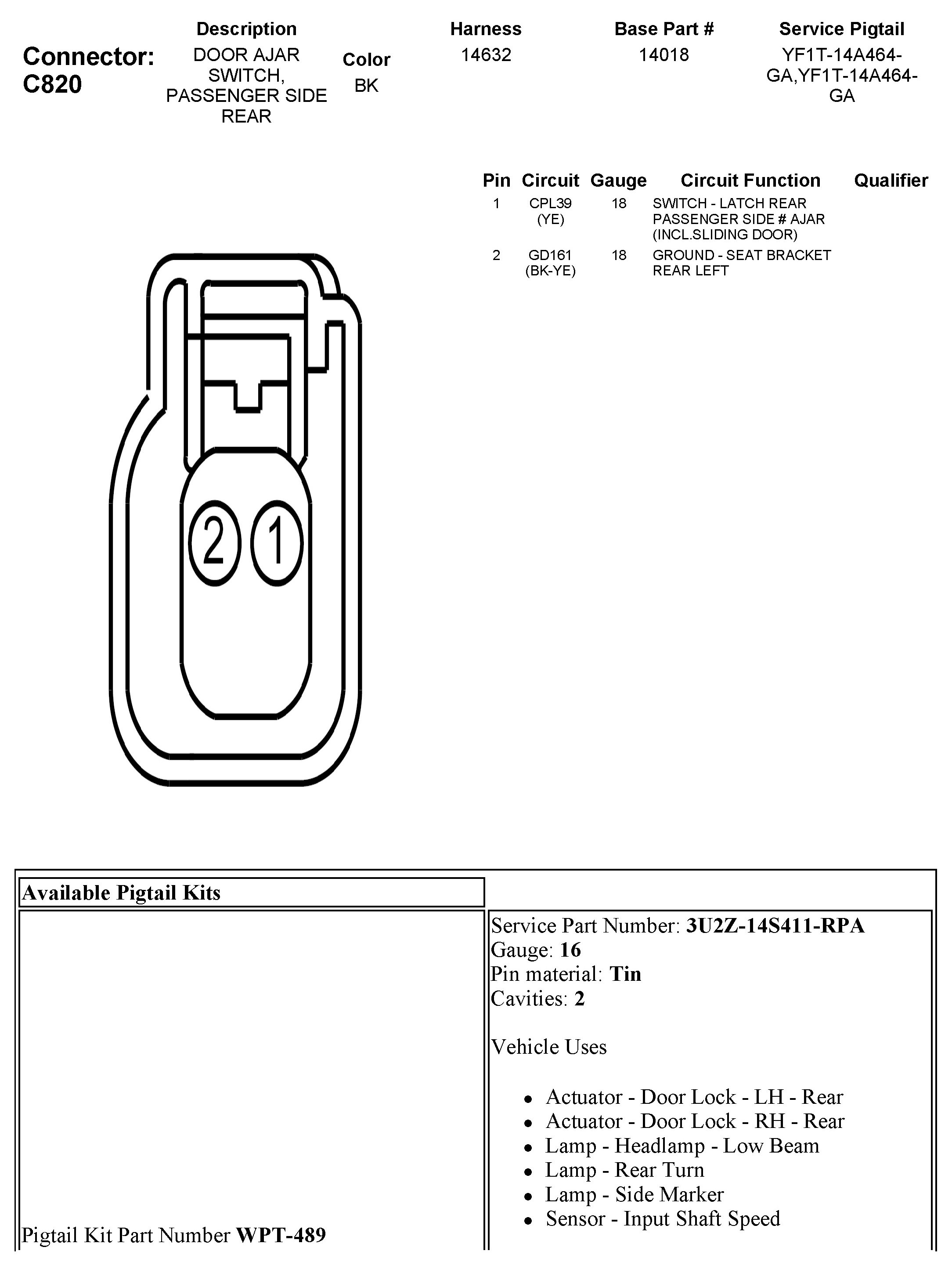

C820 Door Ajar Switch, Passenger Side Rear
