Crankshaft Rear Seal with Retainer Plate

Crankshaft Rear Seal with Retainer Plate









Removal

1. Remove the flywheel or flexplate. For additional information, refer to Flexplate Removal and Replacement or Flywheel Flywheel.

2. Remove the oil pan. For additional information, refer to Oil Pan Oil Pan.

3. Remove the 6 bolts and the crankshaft rear seal and retainer plate as an assembly.

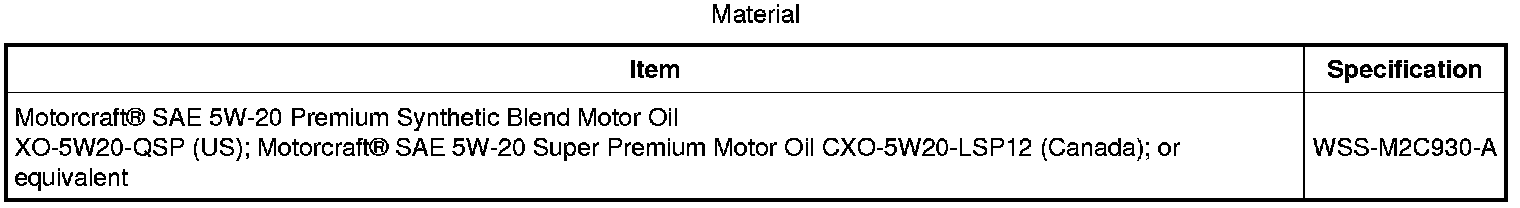

Installation

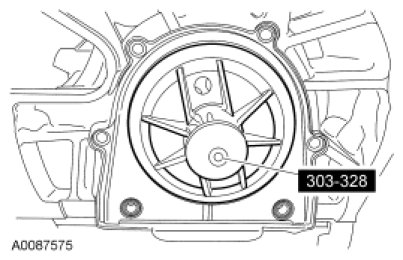

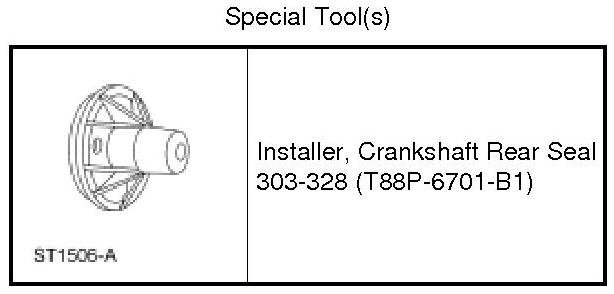

1. Using the Crankshaft Rear Seal Installer, position the crankshaft rear seal with retainer plate onto the crankshaft.





2. Install the 6 crankshaft rear seal with retainer plate bolts.

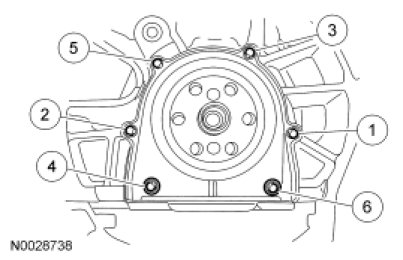

- Tighten in the sequence shown to 10 Nm (89 lb-in).





3. Install the oil pan. For additional information, refer to Oil Pan Oil Pan.

4. Install the flywheel or flexplate. For additional information, refer to Flexplate Removal and Replacement or Flywheel Flywheel.
