Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

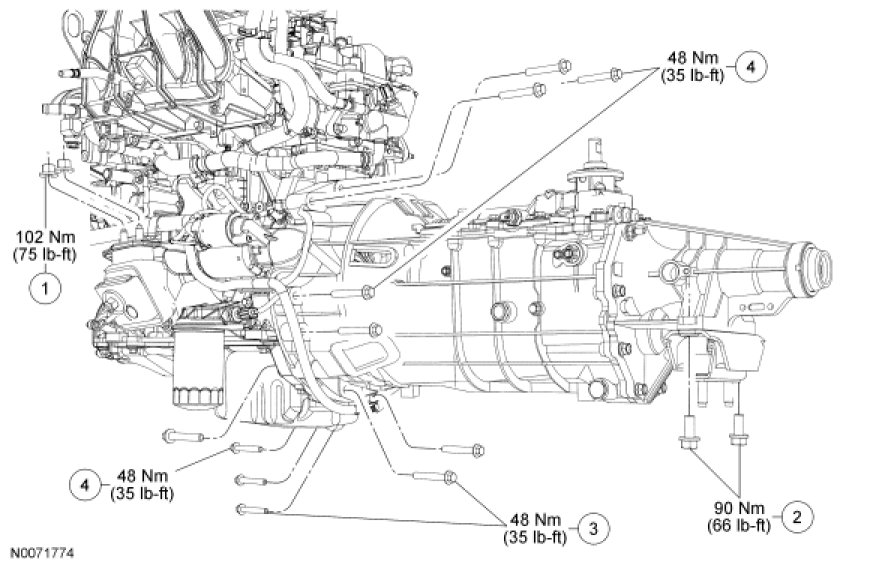

Engine and Transmission Mounts and Fasteners

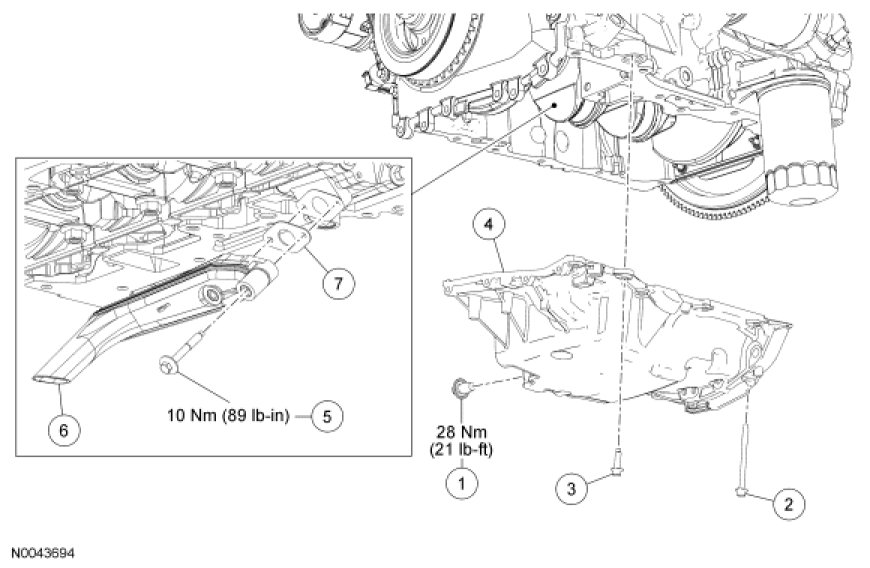

Oil Pan, Oil Pump Screen and Pickup Tube

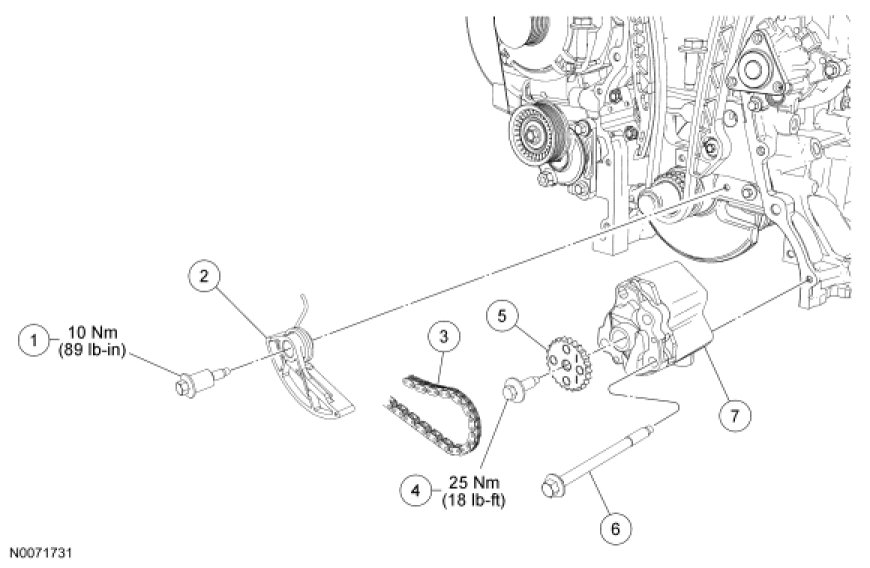

Oil Pump
