Brake Disc Shield




Brake Disc Shield

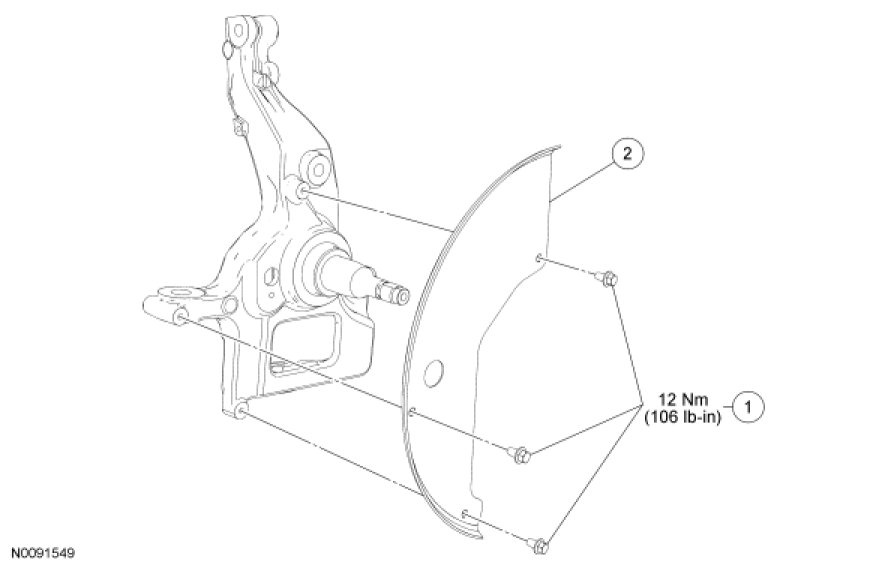

NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.











Removal and Installation

1. Remove the brake disc. For additional information, refer to Brake Disc Brake Disc.

2. Remove the 3 brake disc shield bolts and the brake disc shield.
- To install, tighten to 12 Nm (106 lb-in).

3. To install, reverse the removal procedure.
