Seat - Rear, 4-Door, SuperCab

Seat - Rear, 4-Door, SuperCab









Removal and Installation

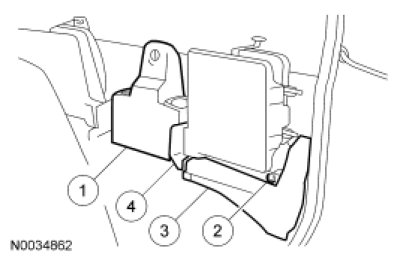

1. Remove the rear seat covers.

1. Remove the jack cover.

2. Remove the pin-type retainer.

3. Remove the outboard trim cover.

4. Remove the inboard trim cover.





2. Remove the bolt and safety belt.
- To install, tighten to 40 Nm (30 lb-ft).

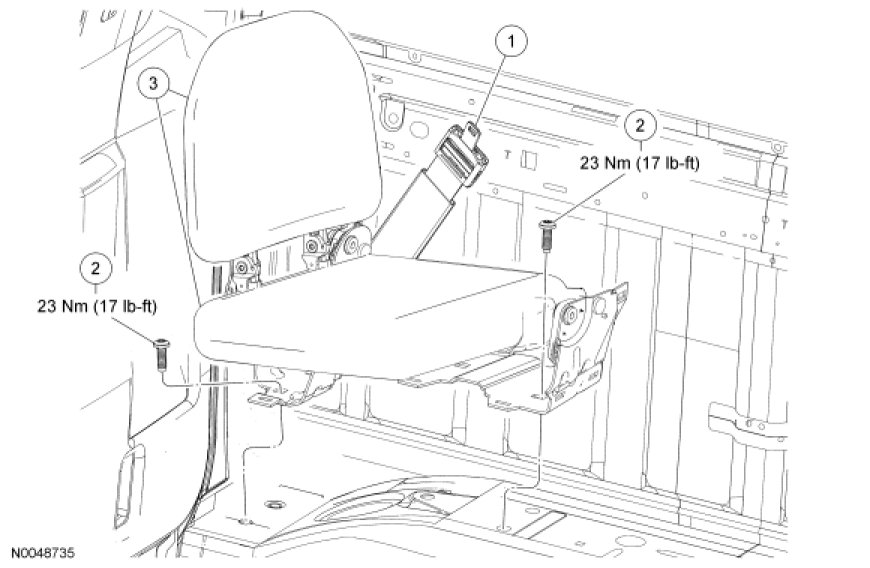

3. Remove the 5 seat-to-floor bolts and remove the seat.
- To install, tighten to 23 Nm (17 lb-ft).

4. NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To install, reverse the removal procedure.
