Seat - Rear, 2-Door, SuperCab

Seat - Rear, 2-Door, SuperCab

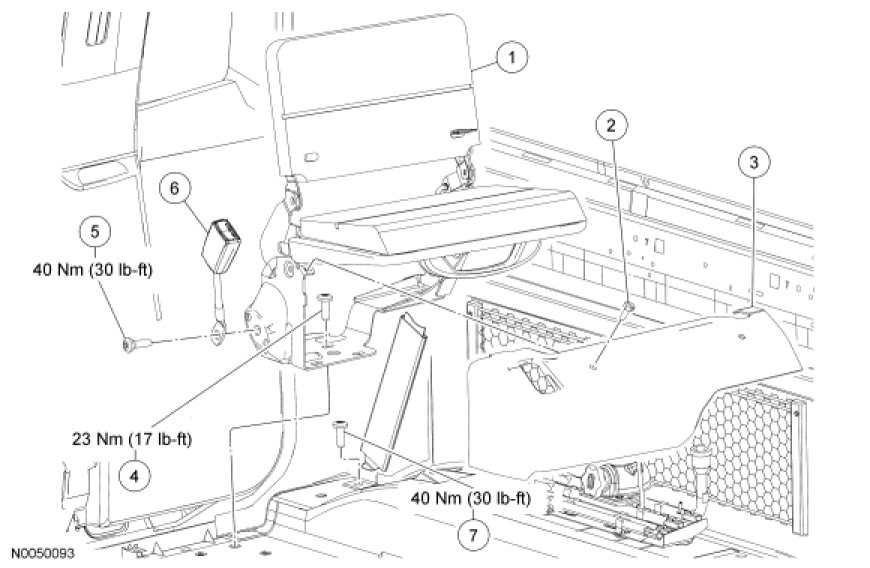

Removal and Installation

1. Remove the lower rear seat trim panel.
- Remove the pin-type retainers.

- Remove the lower rear seat trim panel.

2. Remove the 5 rear seat-to-floor bolts.
- To install, tighten to 23 Nm (17 lb-ft).

3. Remove the safety belt bolt and remove the rear seat.
- To install, tighten to 40 Nm (30 lb-ft).

4. NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To install, reverse the removal procedure.
