Seat Backrest - Rear, 2-Door, SuperCab

Seat Backrest - Rear, 2-Door, SuperCab

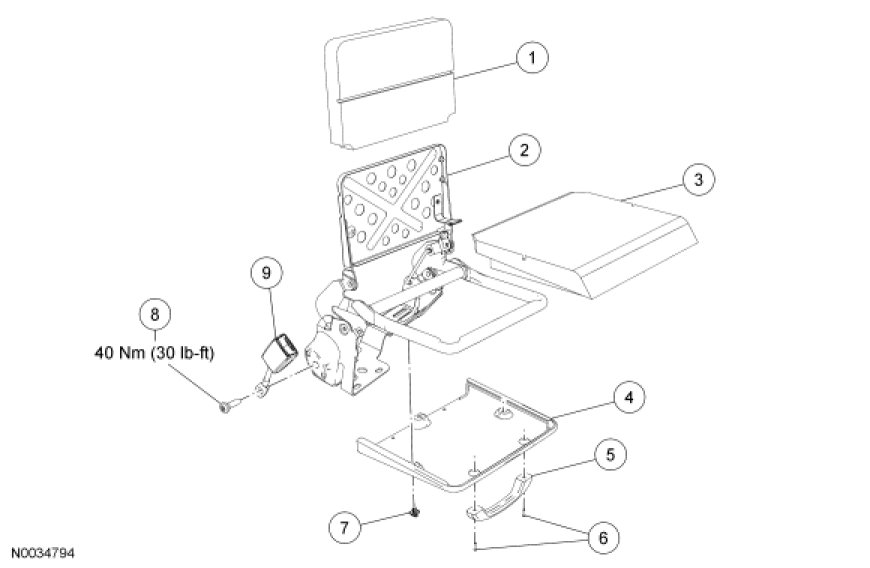

2-Door SuperCab









Disassembly and Assembly

1. Unhook the trim cover retainer.





2. Reposition the backrest trim cover.





3. Remove the backrest trim cover and the safety belt buckle.

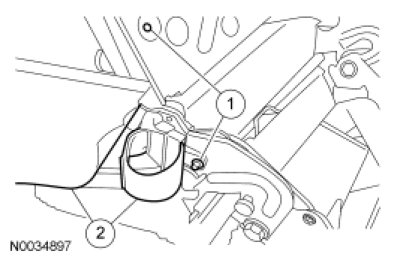

1. Drill out the rivets.

2. Remove the trim cover and the safety belt buckle.





4. NOTICE: Use care when removing the seat backrest foam pad. It may be attached to the backrest frame with adhesive and tear when removed causing component damage.

Remove the backrest foam pad.





5. NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To assemble, reverse the disassembly procedure.
