A-Pillar Trim Panel

A-Pillar Trim Panel

1. Remove the A-pillar trim panel assist handle bolt covers, if equipped.





2. Remove the A-pillar trim panel assist handles, if equipped.

1. Remove the bolts.

2. Remove the handles.

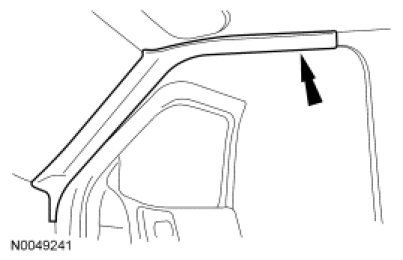

3. Remove the A-pillar trim panel.





4. To install, reverse the removal procedure.
