Radiator Grille




Radiator Grille

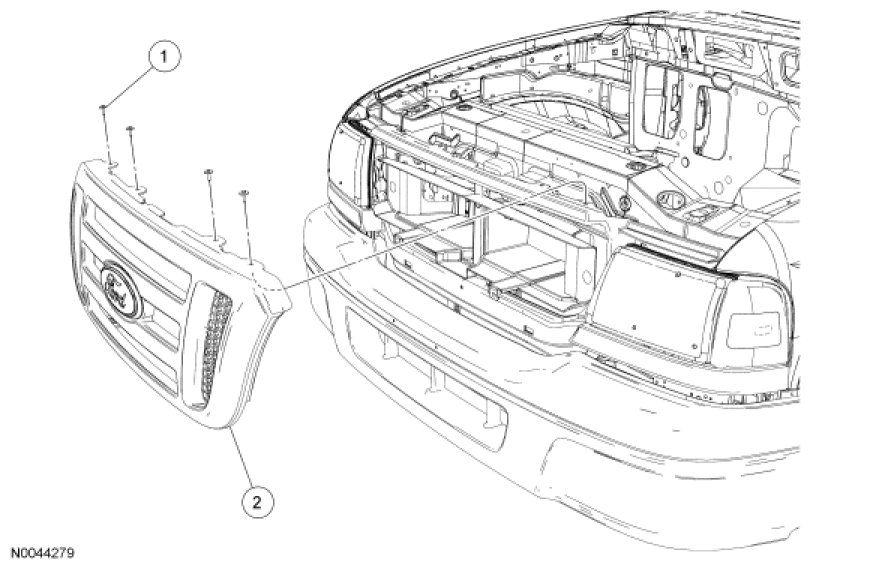

Removal and Installation

1. Remove the radiator grille screws.





2. Remove the radiator grille opening panel.
- Position the opening panel outward and release the retaining clips.





3. To install, reverse the removal procedure.
