Radiator Grille Opening Panel

Radiator Grille Opening Panel









Removal and Installation

1. Remove the headlamp assemblies. For additional information, refer to Exterior Lighting Service and Repair.

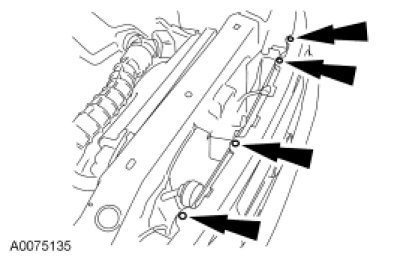

2. Remove the 4 screws from the top of the radiator grille.

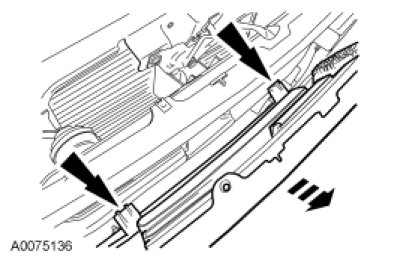

3. Remove the radiator grille.
- Position the radiator grille outward and release the retaining clips.

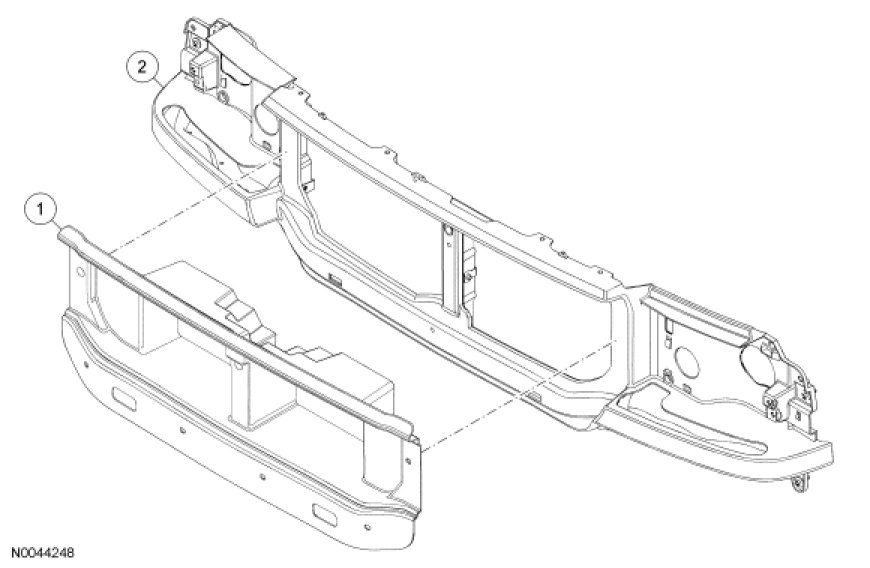

4. Remove the radiator grille opening panel by pulling outward on the panel.

5. To install, reverse the removal procedure.
