Fender Splash Shield

Fender Splash Shield

Both sides

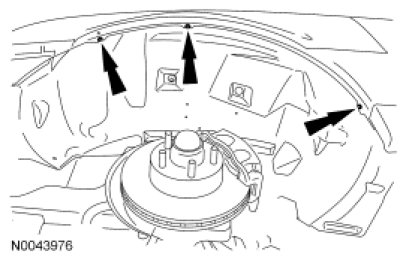

1. NOTE: The RH front fender splash shield electrical connector locators must be disconnected from the splash shield prior to splash shield removal. The LH front fender splash shield vacuum lines must be disconnected from the vacuum storage reservoir prior to splash shield removal.

Remove the 3 scrivets from inside the front fender splash shield.

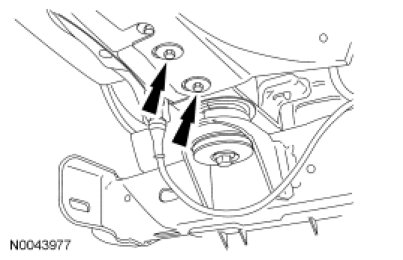

2. Remove the 2 bolts from the lower front of the front fender splash shield.

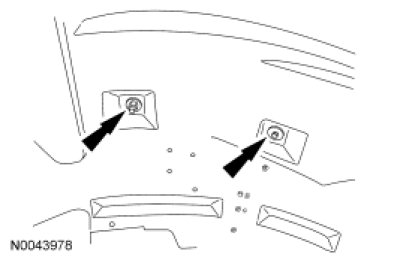

3. NOTE: The LH front fender splash shield is equipped with a bolt and a nut. The RH front fender splash shield is equipped with 2 bolts.

Remove the bolt and the nut from the front fender splash shield.





RH only

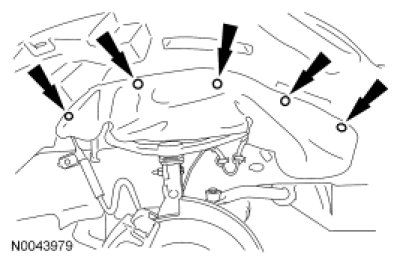

4. Remove the 5 pushpins from the RH front fender splash shield-to-inner splash shield.
- Remove the inner splash shield.





Both sides

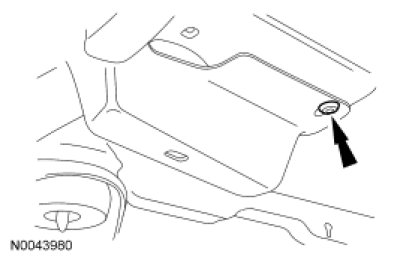

5. Remove the scrivet from the lower rear splash shield.





6. Remove the front fender splash shield.

7. To install, reverse the removal procedure.
