Removal and Replacement

Pilot Bearing





Removal

1. Remove the clutch disc and the clutch pressure plate. For additional information, refer to Clutch Disc and Pressure Plate - 3.7L Removal and Replacement, Clutch Disc and Pressure Plate - 5.0L Removal and Replacement or Clutch Disc and Pressure Plate - 5.4L .

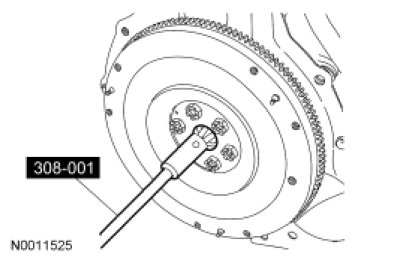

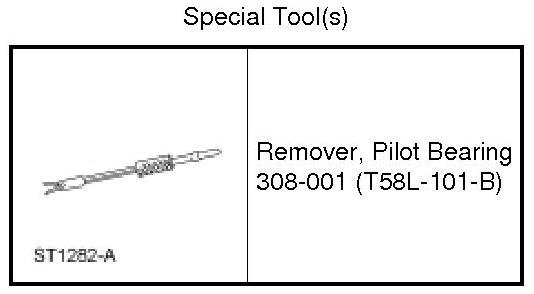

2. Using the Pilot Bearing Remover, remove the pilot bearing.





Installation

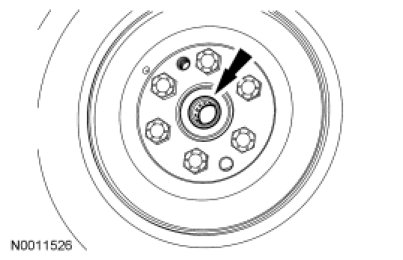

1. Position the pilot bearing to the crankshaft. Using a suitable driver, install the pilot bearing.





2. Install the clutch disc and the clutch pressure plate. For additional information, refer to Clutch Disc and Pressure Plate - 3.7L Removal and Replacement, Clutch Disc and Pressure Plate - 5.0L Removal and Replacement or Clutch Disc and Pressure Plate - 5.4L .
