Transmission Cooler: Description and Operation

Transmission Cooling

Vehicles with automatic transmissions are equipped with a transmission fluid cooler. The transmission fluid cooler transfers heat from the transmission fluid to the ambient air.

For Transmission Fluid Cooler Backflushing and Cleaning, refer to Automatic Transaxle/Transmission - 6R80 Transmission Fluid Cooler Backflushing and Cleaning.

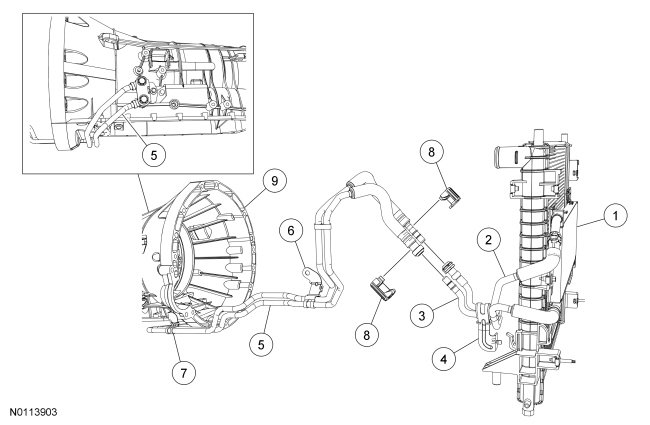

Transmission Fluid Cooler Tubes (5.0L Engine)

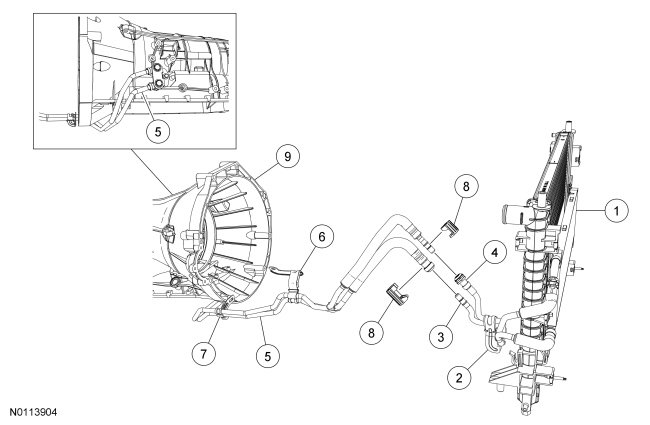

Transmission Fluid Cooler Tubes (3.7L Engine)
