Front Suspension

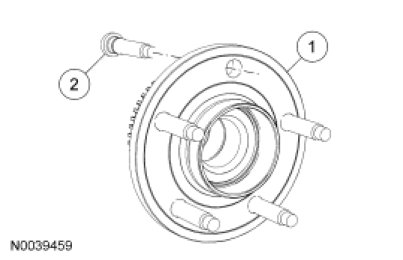

Wheel Studs









Removal

1. Remove the wheel bearing and hub assembly. For additional information, refer to Wheel Bearing and Wheel Hub Front Suspension.

2. Using a press, remove the wheel stud from the wheel bearing and hub assembly.





Installation

1. Using a press, install a new wheel stud.





2. Install the wheel bearing and hub assembly. For additional information, refer to Wheel Bearing and Wheel Hub Front Suspension.
