Accessory Drive Belt

Accessory Drive Belt - 3.7L

Removal and Installation

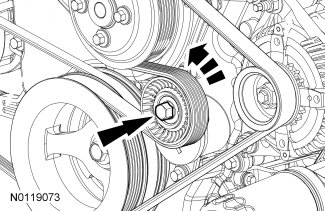

1. Rotate the accessory drive belt tensioner counter clockwise and remove the accessory drive belt.





2. NOTE: For additional information, refer to Accessory Drive Description and Operation in the Description and Operation information for correct drive belt routing.

To install, reverse the removal procedure.
