Backup Lamp Switch: Service and Repair

Reversing Lamp Switch

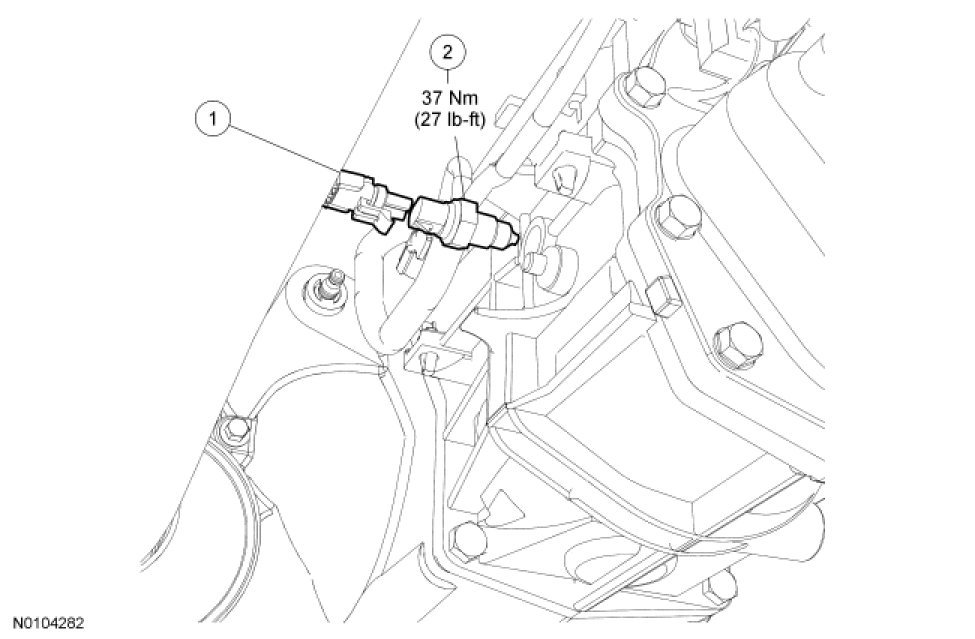

NOTE: T5OD transmission shown, TR3650 transmission similar.

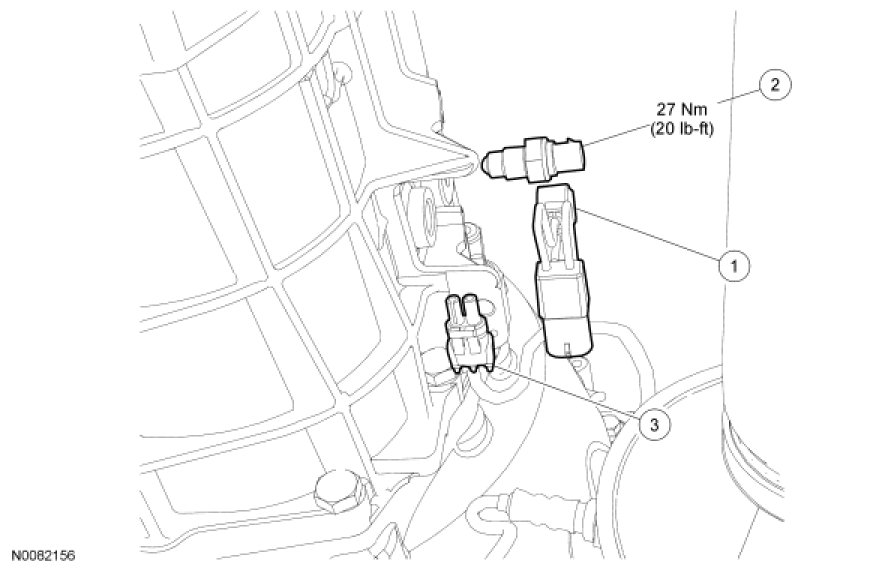

TR6060 Transmission









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Disconnect the electrical connector and remove the reversing lamp switch.
- To install, tighten to 37 Nm (27 lb-ft) (T5OD transmission).

- To install, tighten to 27 Nm (20 lb-ft) (TR3650 or TR6060 transmission).

3. To install, reverse the removal procedure.
