Flexplate Or Flywheel and Crankshaft Rear Seal - Exploded View

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View

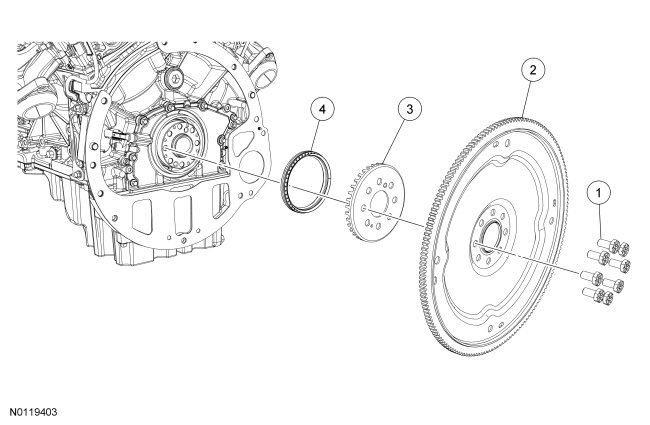

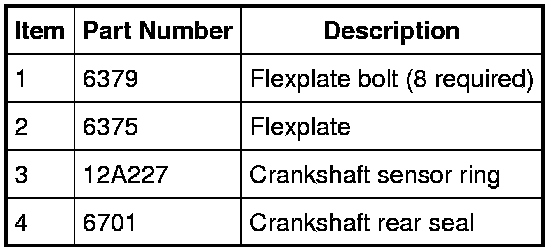

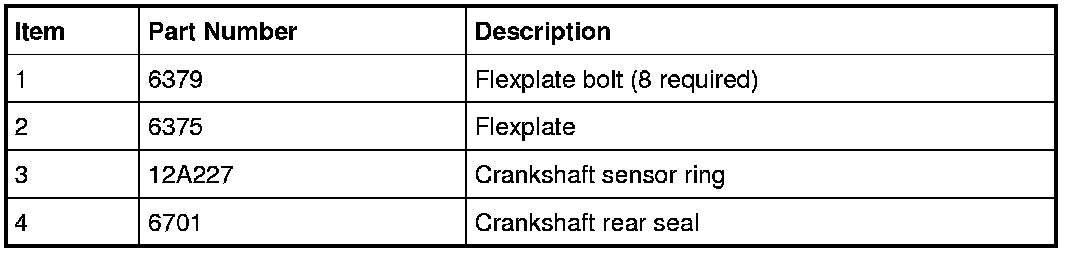

Flexplate

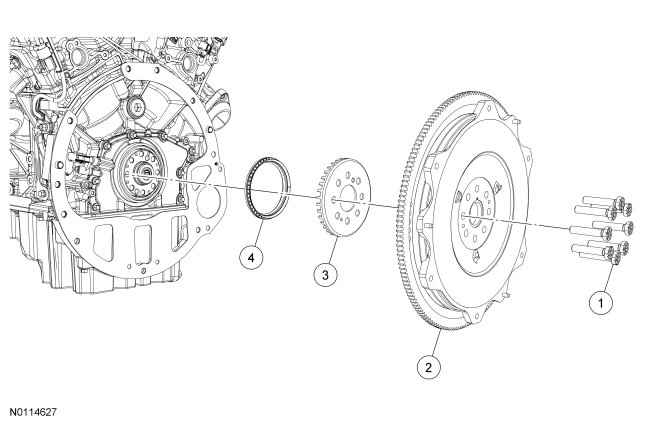

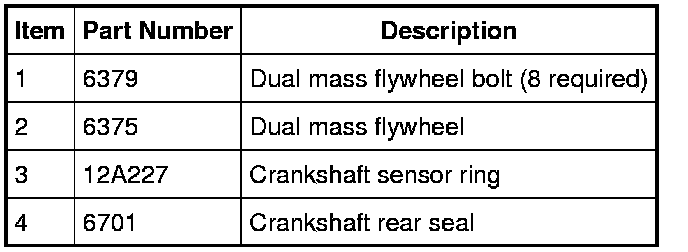

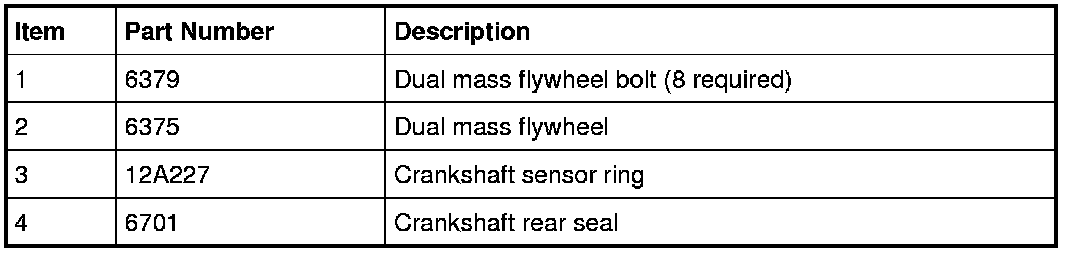

Dual mass flywheel

NOTE: The dual mass flywheel normally has up to a total of 14 degrees (6.5 ring gear teeth) maximum rotational freeplay between the primary (bolted to crankshaft) and the secondary mass (clutch disc face).











1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
