Home >> Ford >> 2011 >> Mustang V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 131 (Parking Aid)

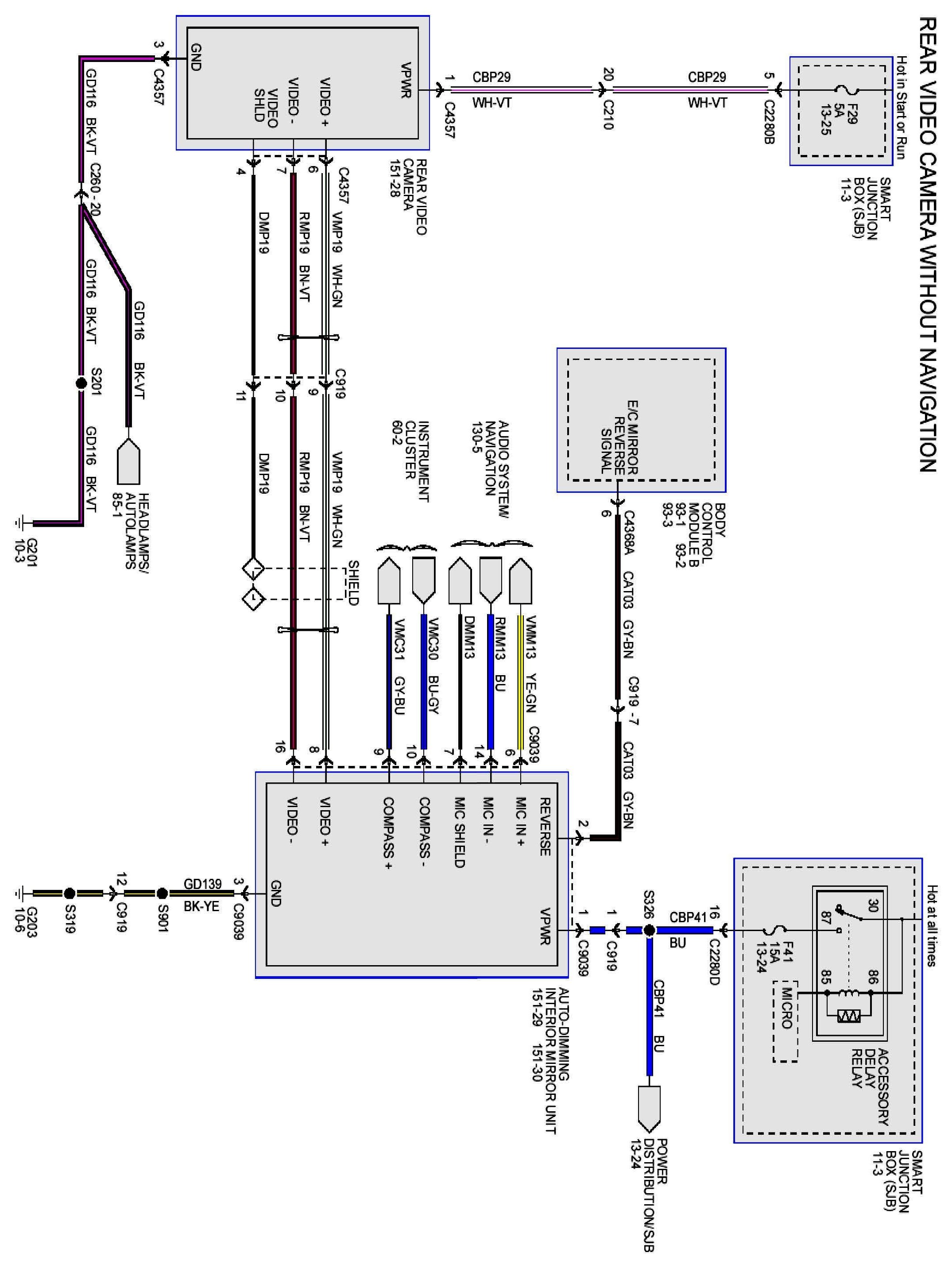

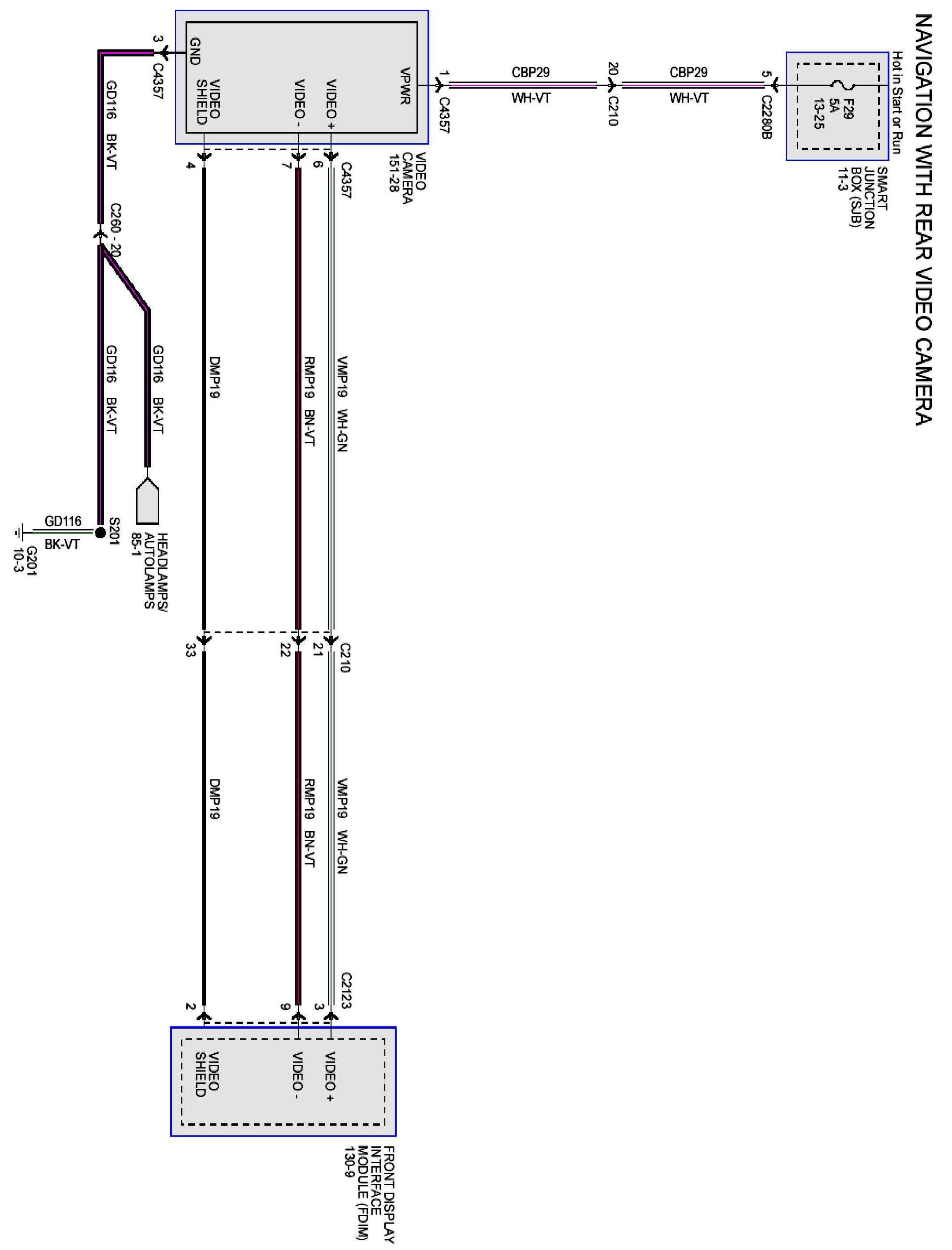

Diagram Set 131 (Parking Aid)
