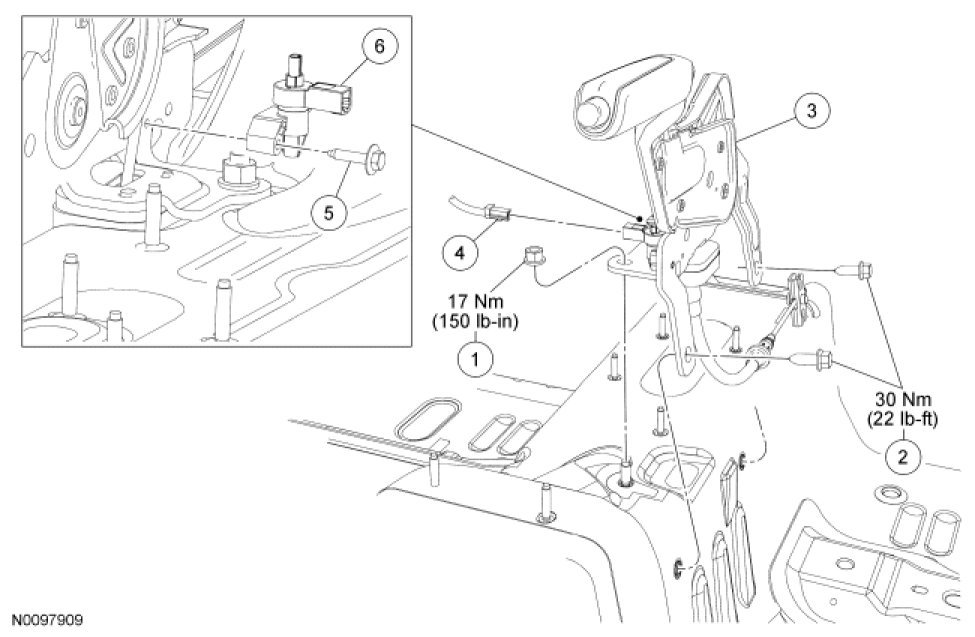

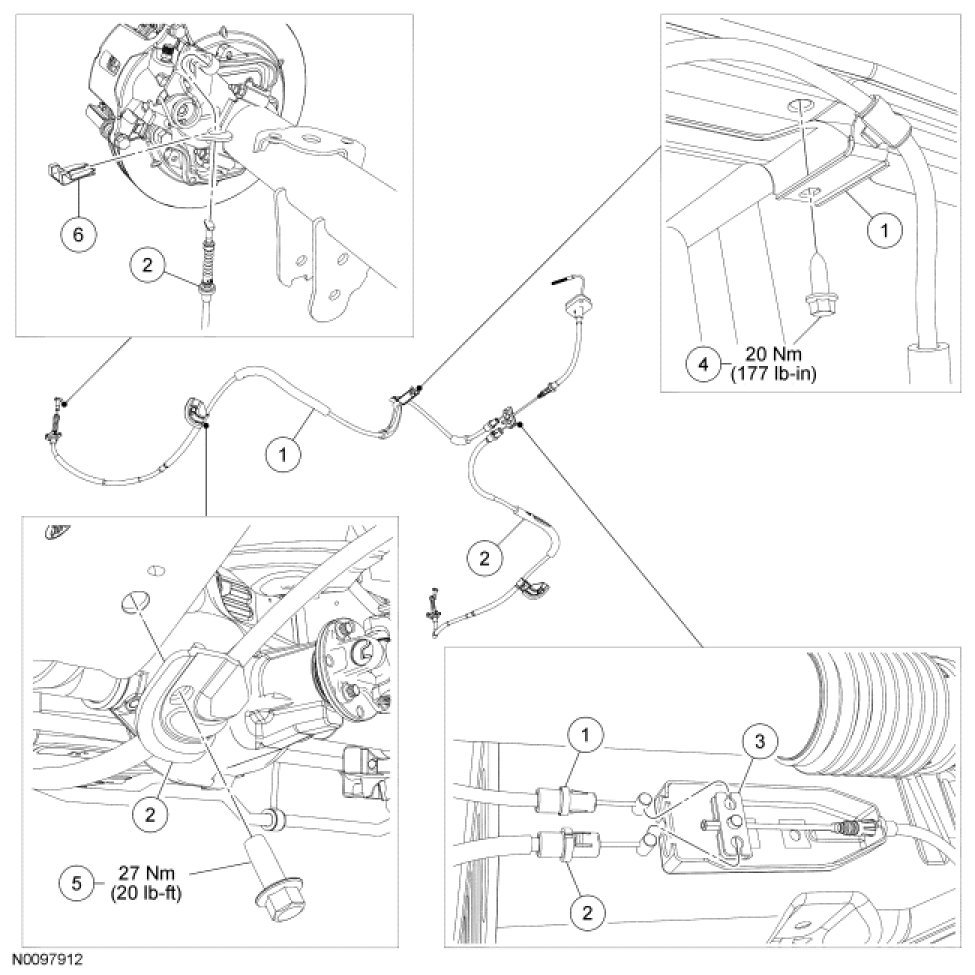

Home >> Ford >> 2011 >> Mustang V6-3.7L >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Parking Brake Cable >> Service and Repair >> Removal and Replacement >> Parking Brake - Exploded View
