A-Pillar Trim Panel

A-Pillar Trim Panel

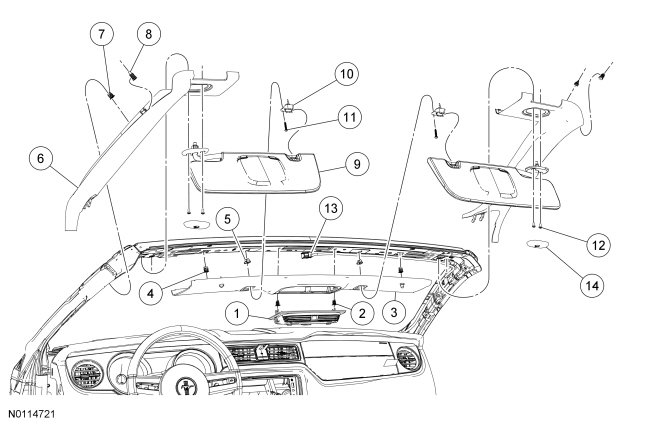

NOTE: Convertible shown, coupe similar.











Removal and Installation

1. Remove the sun visor bracket cover.

2. Remove the 2 sun visor screws and set the sun visor aside.

3. Pull outward on the A-pillar trim to release the retaining clip and the pushpin from the body.

4. Pull slightly down and straight back on the A-pillar to unhook the front lower portions of the A-pillar trim panel.

5. NOTE: To avoid any damage to the A-pillar trim panel, remove any clips from the body and attach them to the A-pillar trim panel.

To install, reverse the removal procedure.
