Antenna - Satellite Radio

Antenna - Satellite Radio









Removal and Installation

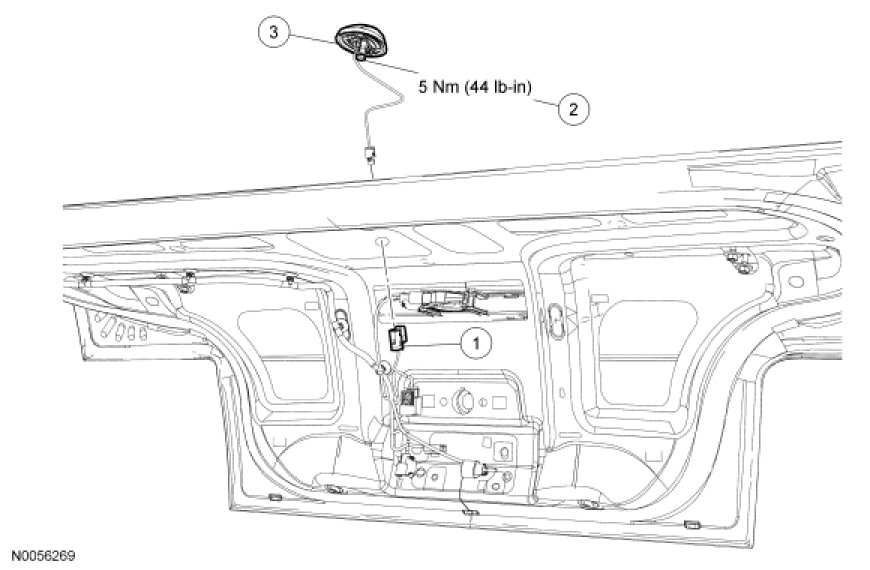

1. Remove the pin-type retainers and the luggage compartment trim.

2. Remove the satellite radio antenna bolt and retainer cage.
- To install, tighten to 5 Nm (44 lb-in).

3. Remove the satellite radio antenna.
- Disconnect the electrical connector.

- Remove the antenna and wiring through the hole in the luggage compartment lid.

4. To install, reverse the removal procedure.
