Parking Brake Shoe and Lining Adjustment

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS AND TIRES .
  3. Remove the brake adjusting hole cover from the backing plate.

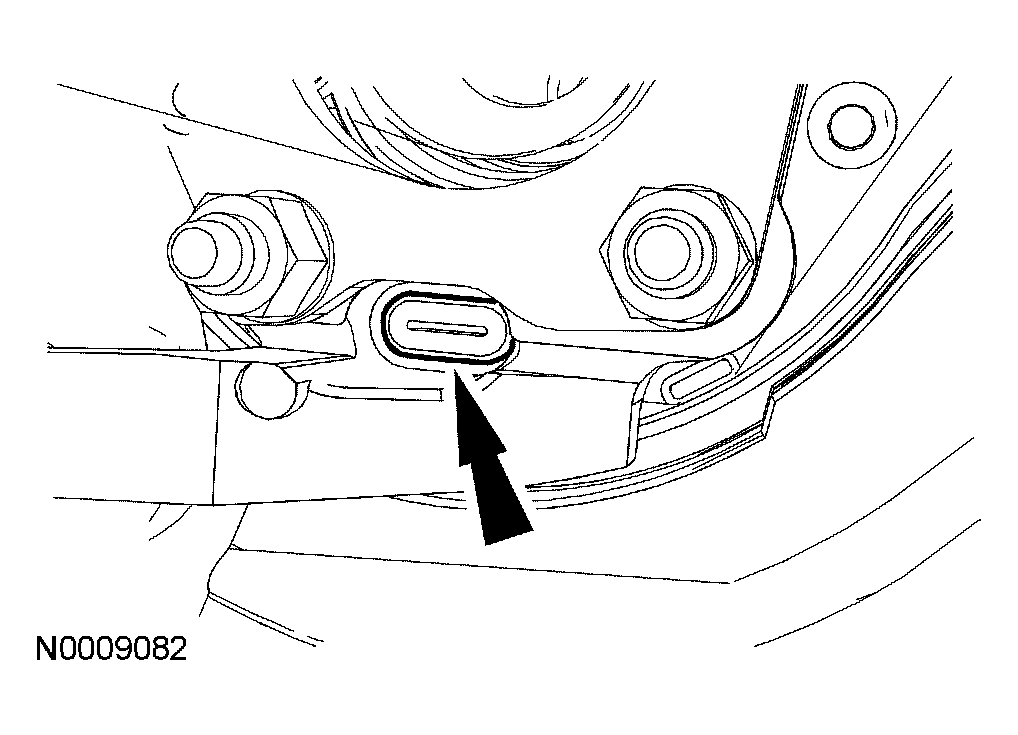

    Fig 1: Remove Brake Adjusting Hole Cover From Backing Plate
    G03919395Courtesy of FORD MOTOR CO.
  4. Turn the brake adjuster screw to expand the parking brake shoe and linings until they drag against the drum-in-hat rotor.
  5. Back off the brake adjuster screw until no drag is evident.
