Procedures

Clutch Pressure Plate Check

1. Check the clutch pressure plate surface for scoring, cracks or discoloration.
- Minor scratches or discoloration should be removed with a fine emery cloth.

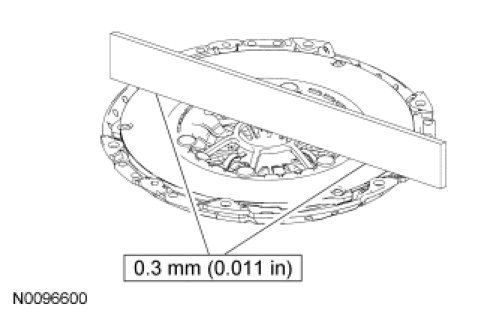

2. Measure the flatness of the clutch pressure plate surface with a straightedge and a feeler gauge.
- Install a new pressure plate as necessary.





3. Check the diaphragm spring fingers for discoloration, scoring and bent or broken segments.

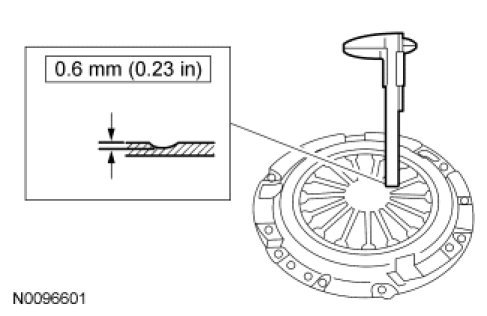

4. Measure the wear of the diaphragm spring fingers.
- Install a new pressure plate as necessary.
