LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2011
>>
Fusion FWD L4-2.5L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Diagrams
>>

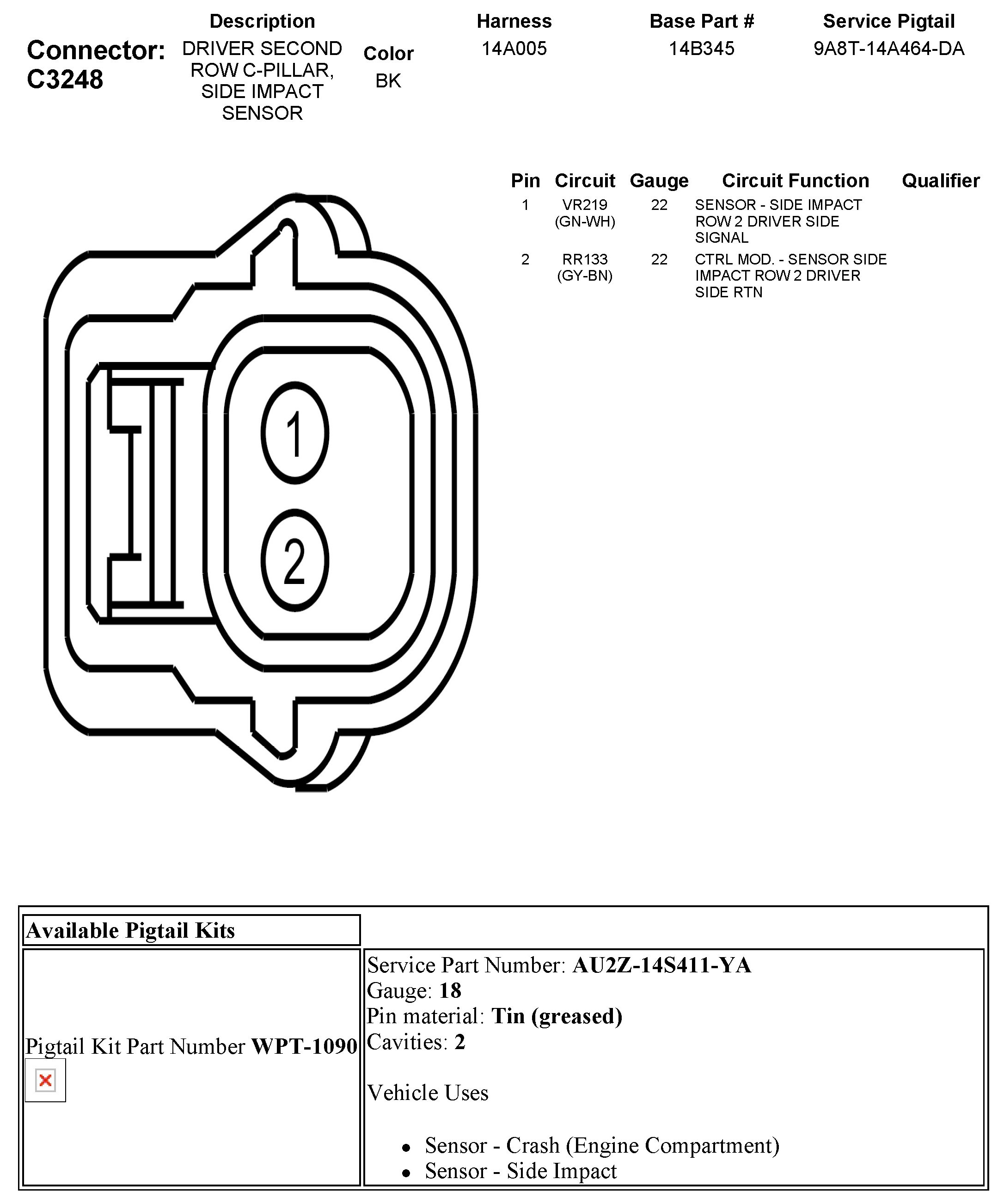

C3248 Driver Second Row C-Pillar, Side Impact Sensor
C3248 Driver Second Row C-Pillar, Side Impact Sensor
