Interior Light Switch: Service and Repair

Ambient Lighting Switch

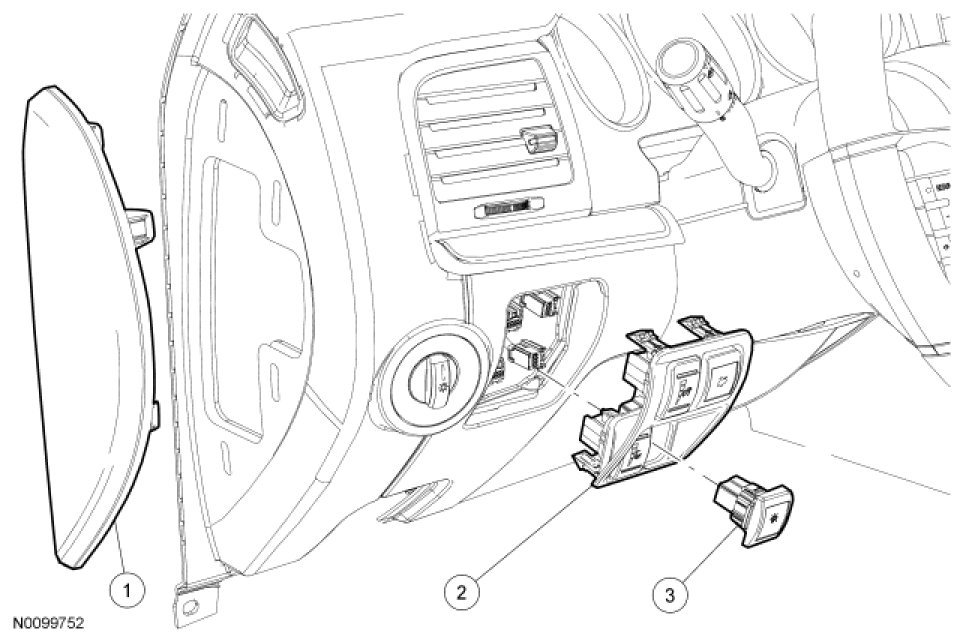

NOTE: Ambient select switch shown, ambient dimmer switch similar.











Removal and Installation

1. Remove the instrument panel side finish panel.

2. NOTE: The switch bezel is removed by pushing from behind.

Remove the switch bezel.

- Disconnect the electrical connectors.

3. Release the tabs and remove the ambient lighting switch.

4. To install, reverse the removal procedure.
