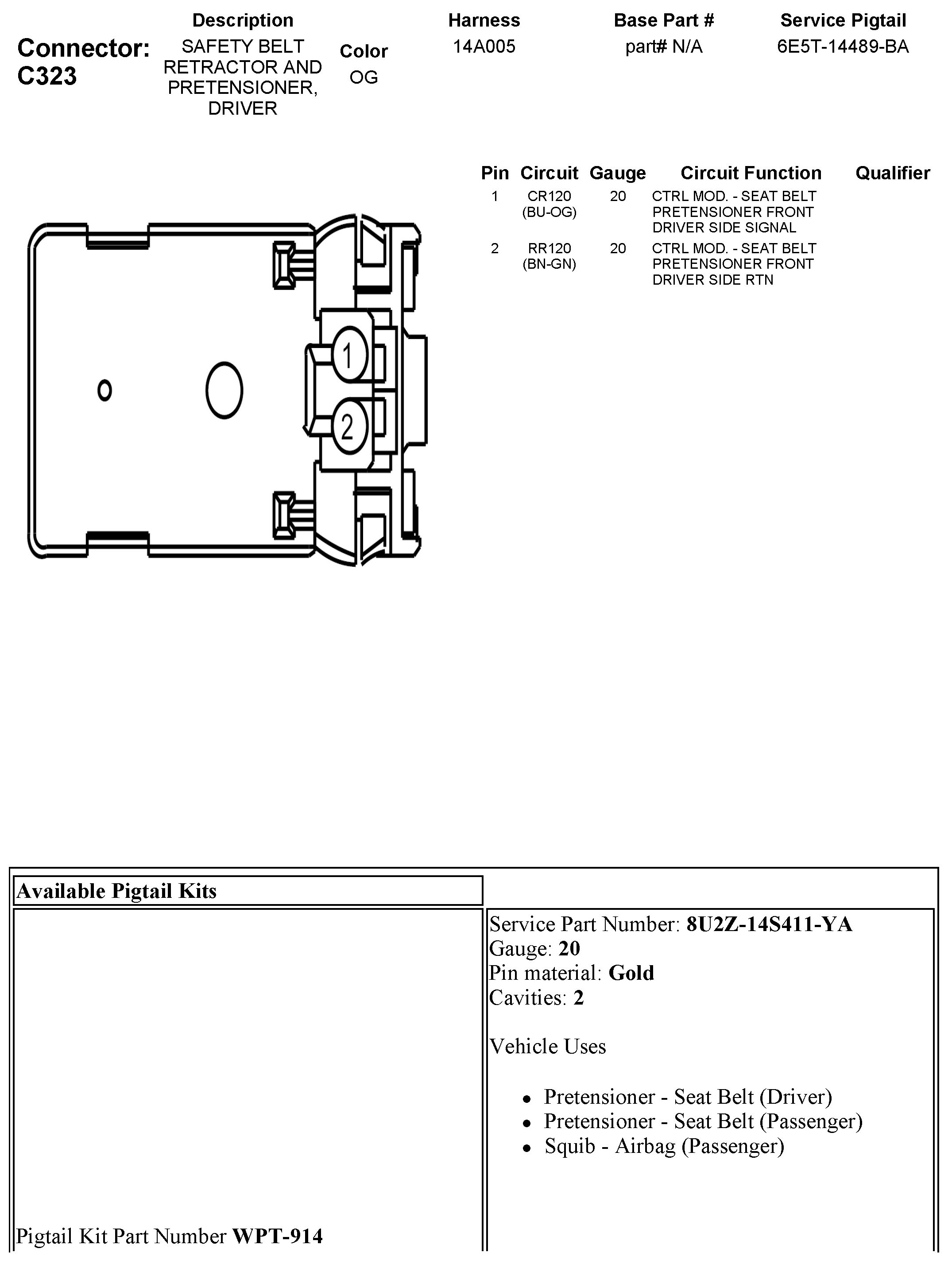

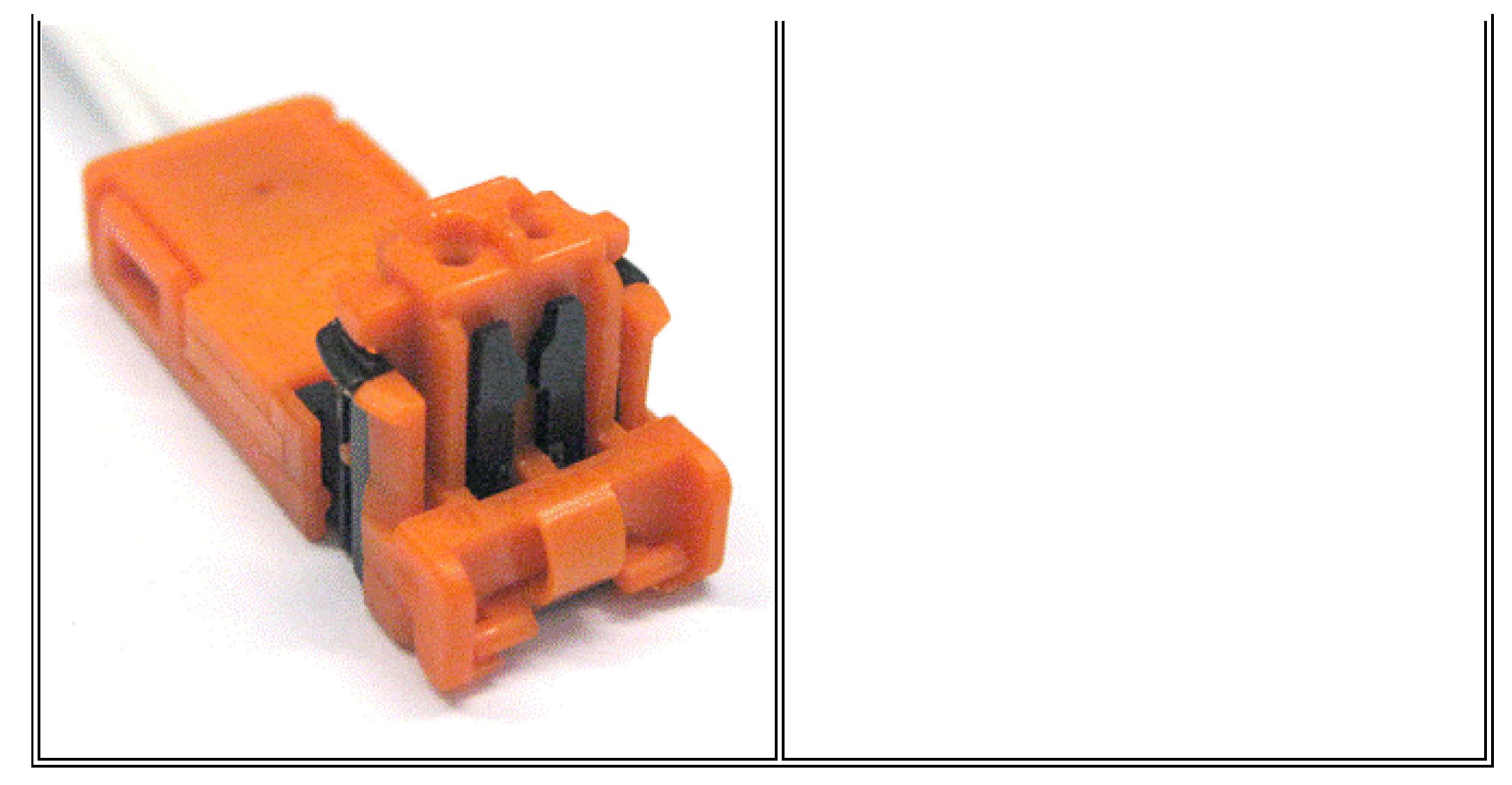

C323 Safety Belt Retractor and Pretensioner, Driver
C323 Safety Belt Retractor and Pretensioner, Driver
