Arm/Disarm Switch: Service and Repair

Anti-Theft Inhibit Switch - Luggage Compartment









Removal and Installation

1. Remove the luggage compartment lid lock cylinder. For additional information, refer to Handles, Locks, Latches and Entry Systems Service and Repair.

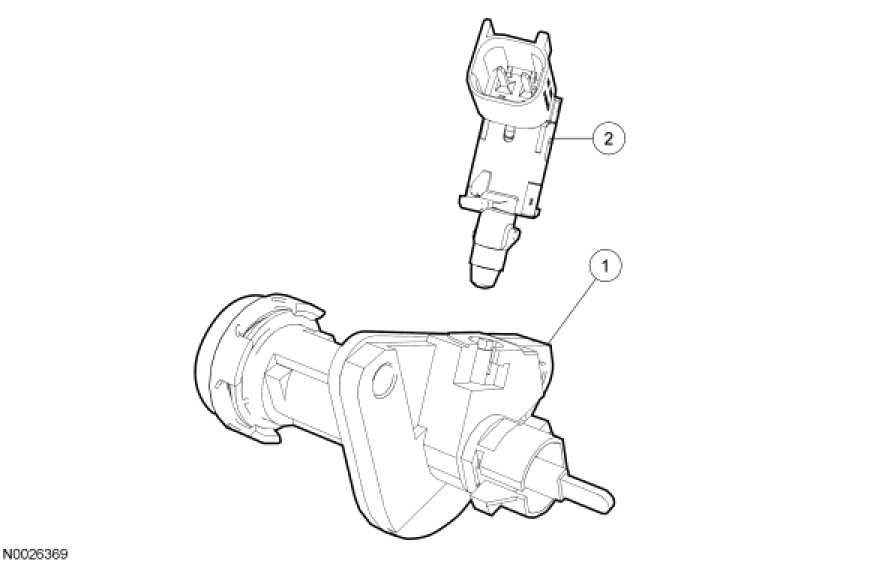

2. Lift the retaining tabs, turn the switch clockwise and remove the luggage compartment anti-theft inhibit switch (also known as the luggage compartment lid disarm switch).

3. To install, reverse the removal procedure.
