Instrument Cluster (IC): Notes

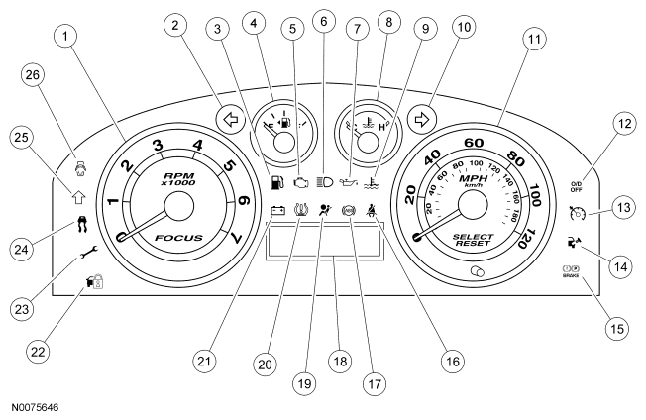

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Low fuel warning indicator |
| 4 | - | Fuel gauge |
| 5 | - | Malfunction Indicator Lamp (MIL) |
| 6 | - | High beam indicator |
| 7 | - | Low engine oil pressure warning indicator |
| 8 | - | Engine coolant temperature gauge |
| 9 | - | Engine over-temperature warning indicator |
| 10 | - | RH turn indicator |
| 11 | - | Speedometer |
| 12 | - | Overdrive (O/D) off |
| 13 | - | Cruise control indicator |
| 14 | - | Check fuel cap indicator |
| 15 | - | Brake warning indicator |
| 16 | - | Safety belt warning indicator |
| 17 | - | ABS warning indicator |
| 18 | - | Message center display area |
| 19 | - | Air bag warning indicator |
| 20 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 21 | - | Charging system warning indicator |
| 22 | - | Anti-theft indicator |
| 23 | - | Powertrain malfunction (wrench) warning indicator |
| 24 | - | Traction control indicator |
| 25 | - | Upshift indicator |
| 26 | - | Door ajar warning indicator |
The Instrument Cluster (IC) contains gauges, informational indicators and warning indicators that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IC uses a 2-line display of basic informational items such as the odometer and trip odometer and for the message center display information.
All indicator lamps are LEDs, which are not replaceable. The only replaceable item is the IC lens assembly.
