Parking, Rear and License Lamps

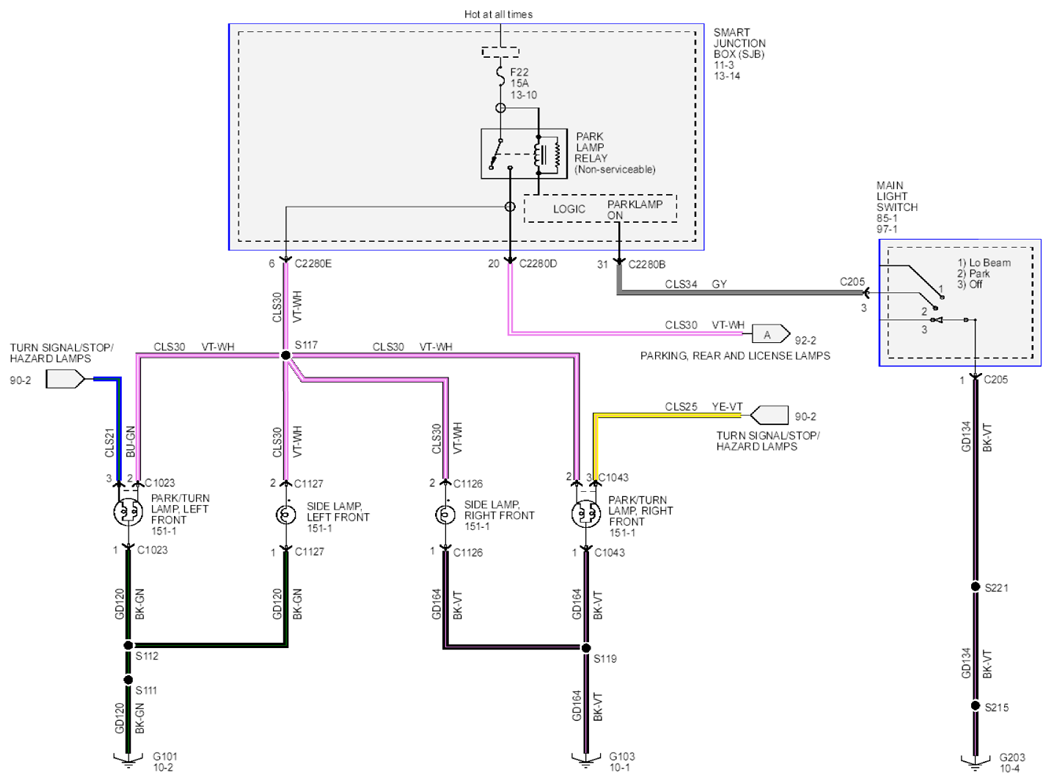

Fig 1: Parking, Rear And License Lamps Circuit Diagram (1 Of 2)
G07861090Courtesy of FORD MOTOR CO.

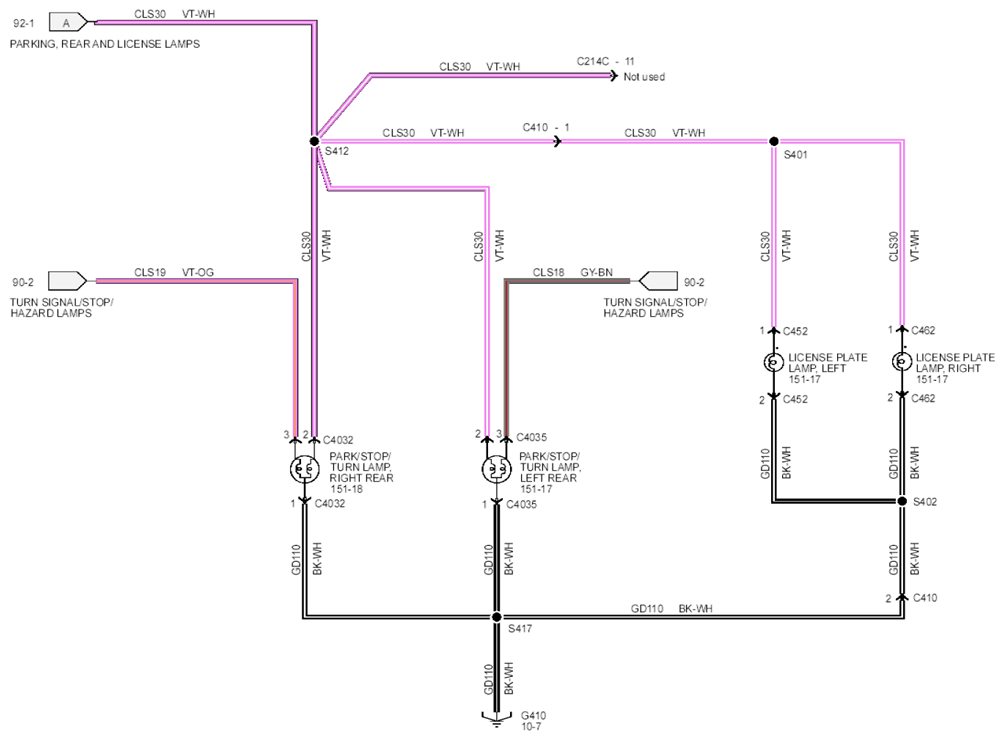

Fig 2: Parking, Rear And License Lamps Circuit Diagram (2 Of 2)
G07861091Courtesy of FORD MOTOR CO.
