Evaporative Emissions Canister Purge Valve Connector - C123

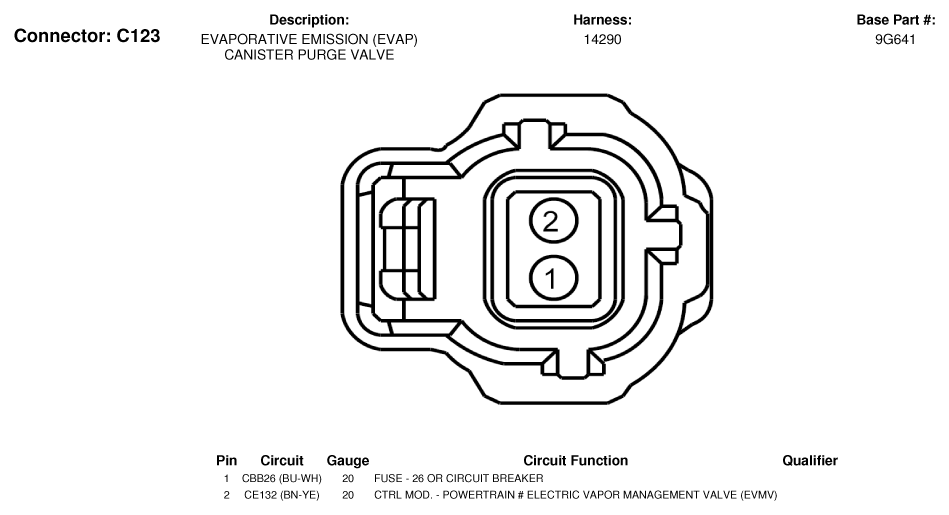

Fig 1: Evaporative Emissions Canister Purge Valve Connector End View (C123)

G07335249

Courtesy of FORD MOTOR CO.
