Enhanced Evaporative Emission (EVAP) System - All Others

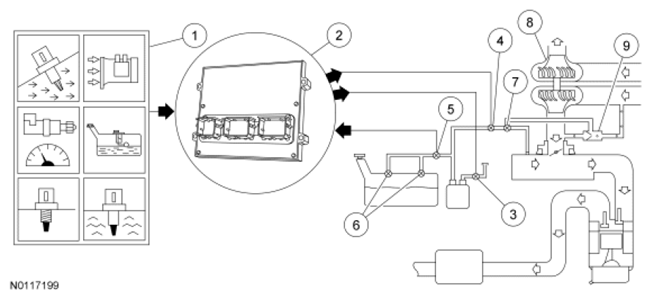

The enhanced EVAP system consists of a fuel tank, fuel filler cap or capless fuel tank filler pipe, fuel tank mounted or inline fuel vapor control valve, fuel vapor vent valve, EVAP canister, fuel tank mounted or fuel pump mounted or inline fuel tank pressure (FTP) sensor, EVAP canister purge valve, EVAP canister purge check valve (turbocharged engines only), intake manifold hose assembly, EVAP canister vent solenoid, PCM and connecting wires, and fuel vapor hoses. The enhanced EVAP system, including all the fuel vapor hoses, can be checked when a leak is detected by the PCM. For additional information on the EVAP system components, refer to ENGINE CONTROL COMPONENTS .
- The enhanced EVAP system uses inputs from the ECT sensor or cylinder head temperature (CHT) sensor, the IAT sensor, the MAF sensor, the VSS and the FTP sensor to provide information about engine operating conditions to the PCM. The PCM uses the FLI and FTP sensor signals to determine activation of the EVAP leak check monitor based on the presence of vapor generation or fuel sloshing.
- The PCM determines the desired amount of purge vapor flow to the intake manifold for a given engine condition. The PCM then outputs the required signal to the EVAP canister purge valve. The PCM uses the enhanced EVAP system inputs to evacuate the system using the EVAP canister purge valve, seal the enhanced EVAP system from the atmosphere using the EVAP canister vent solenoid, and uses the FTP sensor to observe total vacuum lost for a period of time.
- The EVAP canister vent solenoid seals the enhanced EVAP system to atmosphere during the EVAP leak check monitor.
- For E-Series, Escape/Mariner, Expedition, Explorer, F-150, Flex GTDI 3.5L, F-Series Super Duty, Fusion 2.5L, Fusion 3.0L, Milan, MKS 3.5L, MKT 3.5L, Navigator and Taurus GTDI 3.5L, the PCM outputs a duty cycle between 0% and 100% to control the EVAP canister purge valve. For all others, the PCM outputs a variable current between 0 and 1,000 mA to control the EVAP canister purge valve.
- The FTP sensor monitors the fuel tank pressure during engine operation and continuously transmits an input signal to the PCM. During the EVAP monitor testing, the FTP sensor monitors the fuel tank pressure or vacuum bleed-up.
- A valve inside the fuel tank-mounted fuel vapor tube assembly prevents liquid fuel from entering the EVAP canister and the EVAP canister purge valve under any vehicle altitude, handling, or rollover condition.
- On turbocharged engines, the EVAP canister purge check valve prevents boost pressure from entering the EVAP system.
- On turbocharged engines, the turbocharger creates boost pressure in the intake manifold.
- On turbocharged engines, an EVAP ejector venturi assembly (if equipped) is used to create a vacuum in the purge line during boost conditions. When in boost conditions a percentage of the boost pressure is applied to the EVAP ejector venturi assembly to create a vacuum. This vacuum draws purge vapors through the EVAP ejector venturi assembly into the intake air system upstream of the turbocharger.
