Camshaft Journal to Bearing Clearance - OHC Engines

NOTE: Refer to the appropriate ENGINE MECHANICAL - 2.0L article for the specification.
    NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

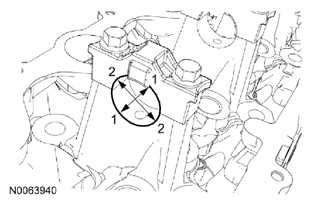

    Fig 1: Directions Of Measuring Camshaft Journal To Bearing Clearance
    G07802708Courtesy of FORD MOTOR CO.
  1. Measure each camshaft bearing in 2 directions.
    • Subtract the camshaft journal diameter from the camshaft bearing diameter.
