Cylinder Head (View 2 of 2)

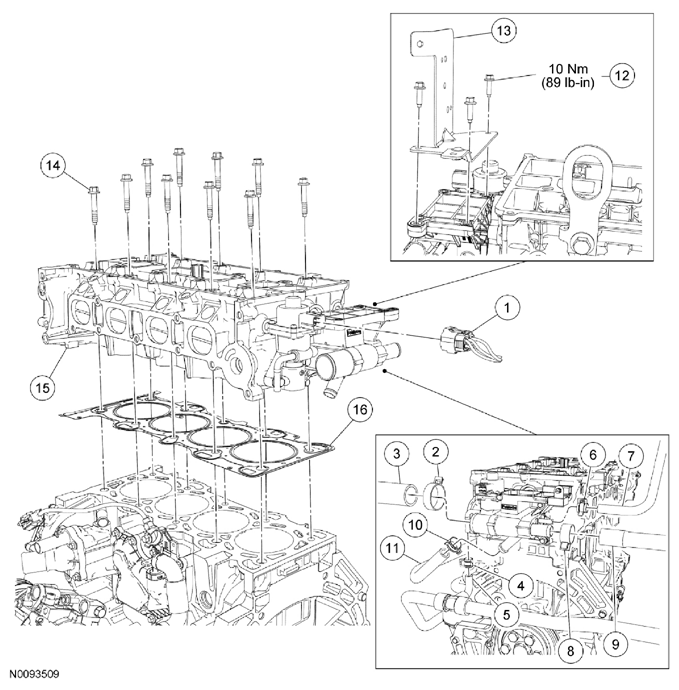

Fig 1: Exploded View Of Cylinder Head (View 2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	EGR valve electrical connector (part of 12B637)
2	8287	Upper radiator hose clamp
3	8260	Upper radiator hose
4	W52592	EGR coolant tube clamp
5	18K580	EGR coolant hose (part of heater hose)
6	-	Engine coolant vent hose clamp (part of 8W005)
7	8W005	Engine coolant vent hose
8	-	Heater hose clamp (part of 18K580)
9	18K580	Heater hose
10	W525958	Bypass hose clamp
11	8548	Bypass hose
12	W500204	Wiring harness bracket bolt (2 required)
13	14A301	Wiring harness bracket
14	6065	Cylinder head bolt (10 required)
15	6050	Cylinder head
16	6051	Cylinder head gasket
