Turn Signal_Stop_Hazard Lamps

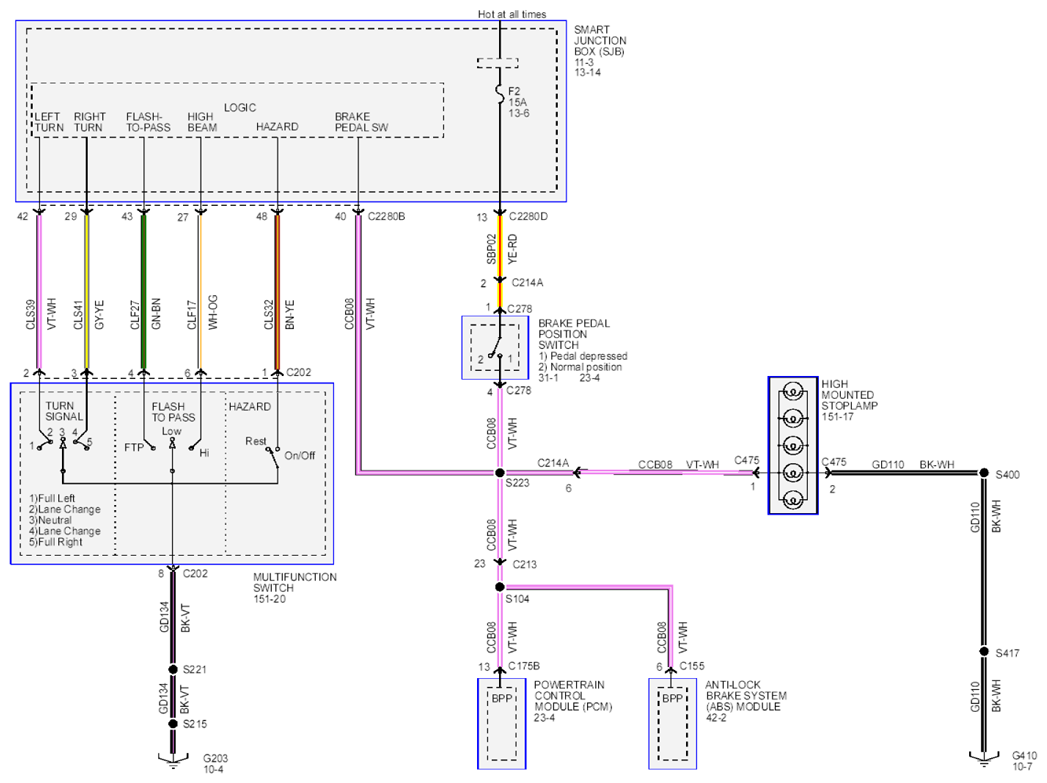

Fig 1: Turn Signal, Stop And Hazard Lamps Circuit Diagram (1 Of 2)
G07861088Courtesy of FORD MOTOR CO.

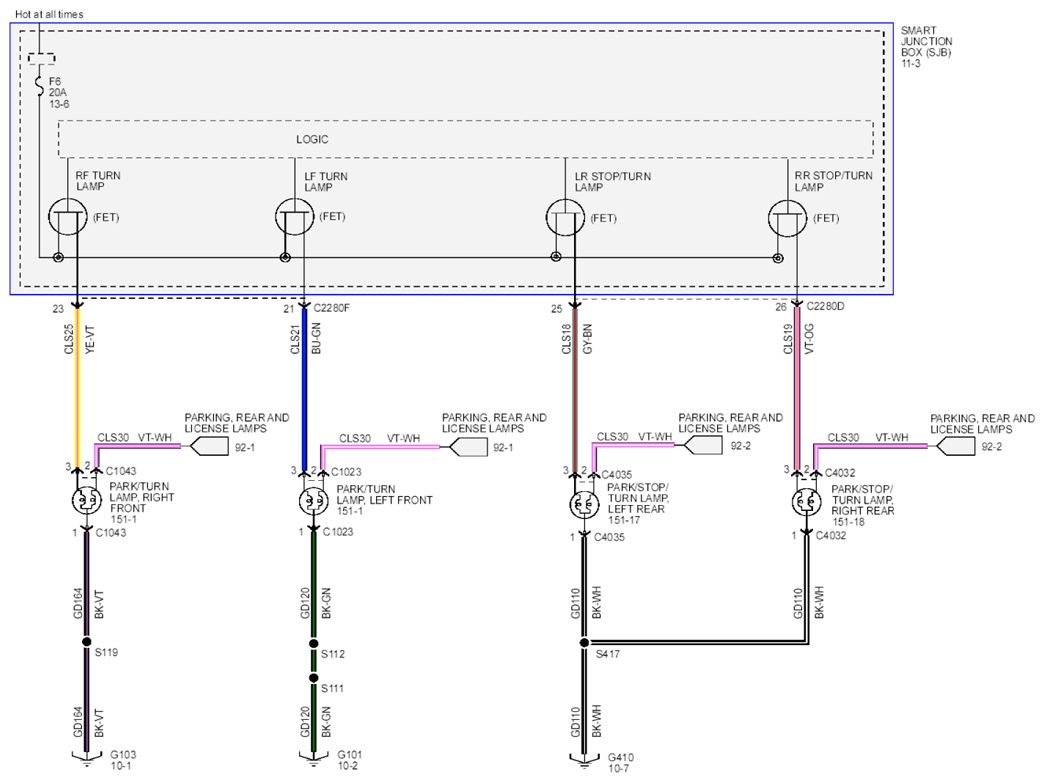

Fig 2: Turn Signal, Stop And Hazard Lamps Circuit Diagram (2 Of 2)
G07861089Courtesy of FORD MOTOR CO.
