Luggage Compartment Lid Release
Luggage Compartment Lid Release

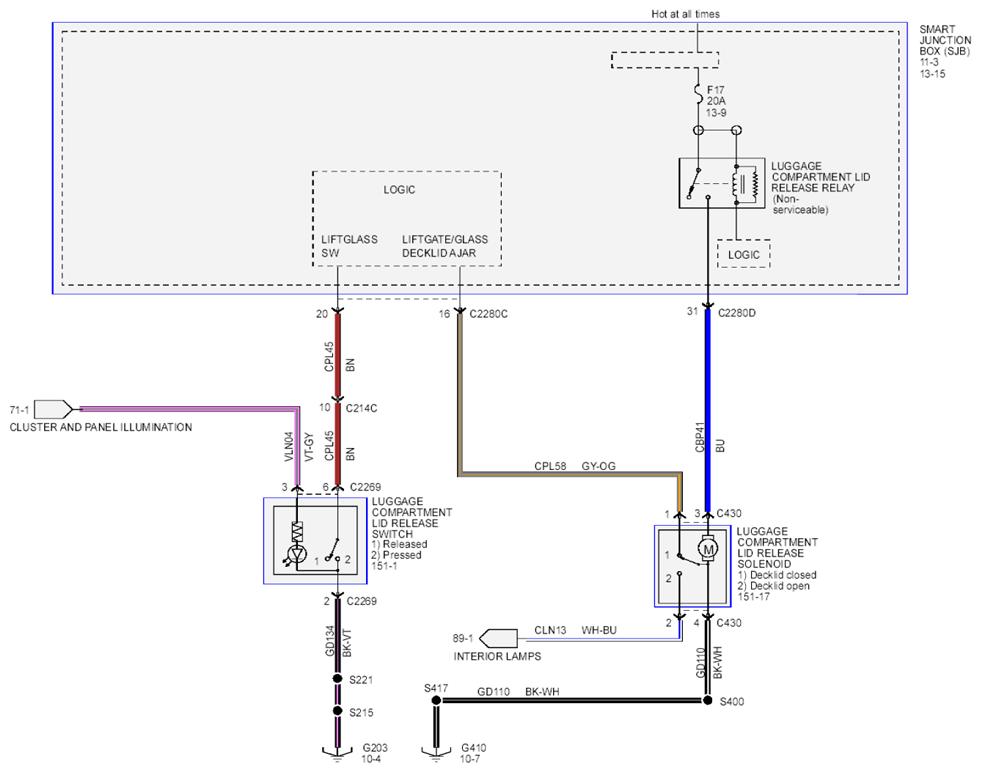

Fig 1: Luggage Compartment Lid Release Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
