Focus S, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Interior Lamps
Interior Lamps

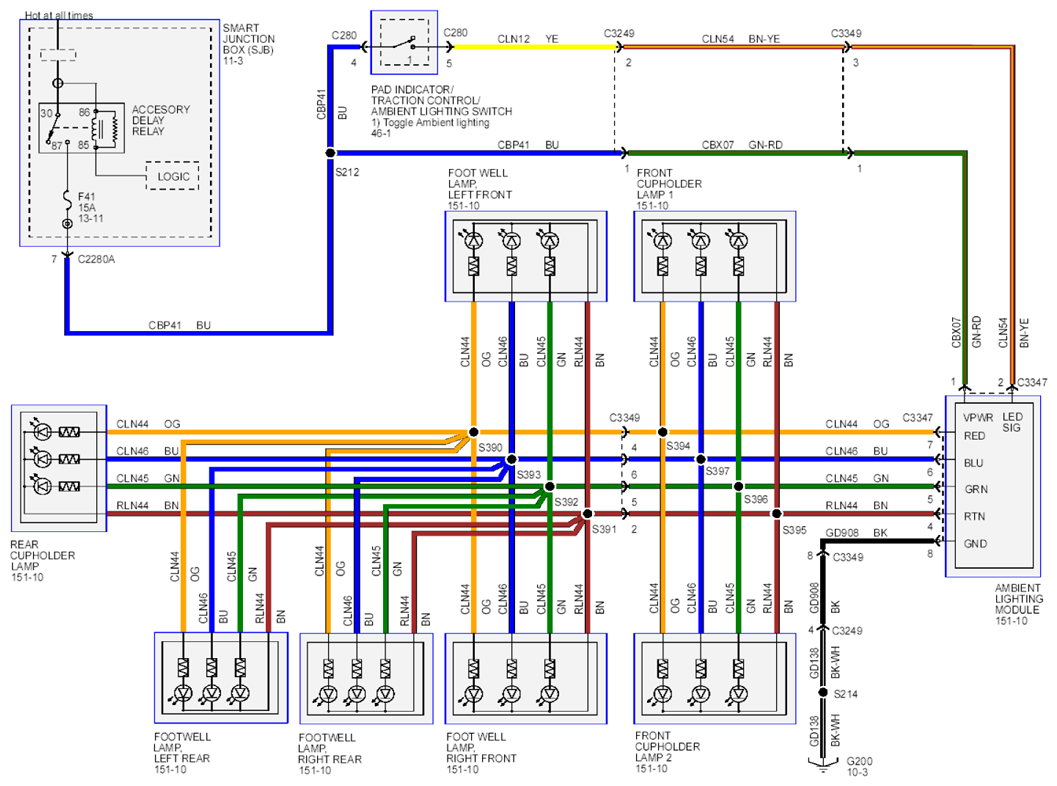

Fig 1: Interior Lamps Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

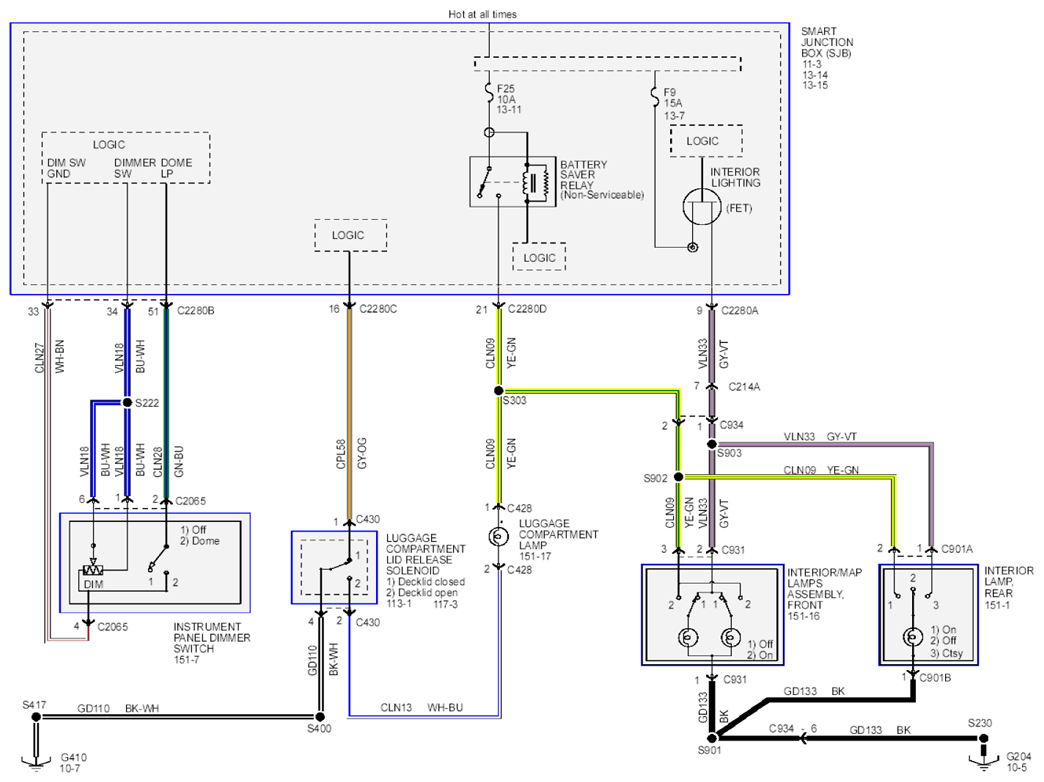

Fig 2: Interior Lamps Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
