Instrument Cluster

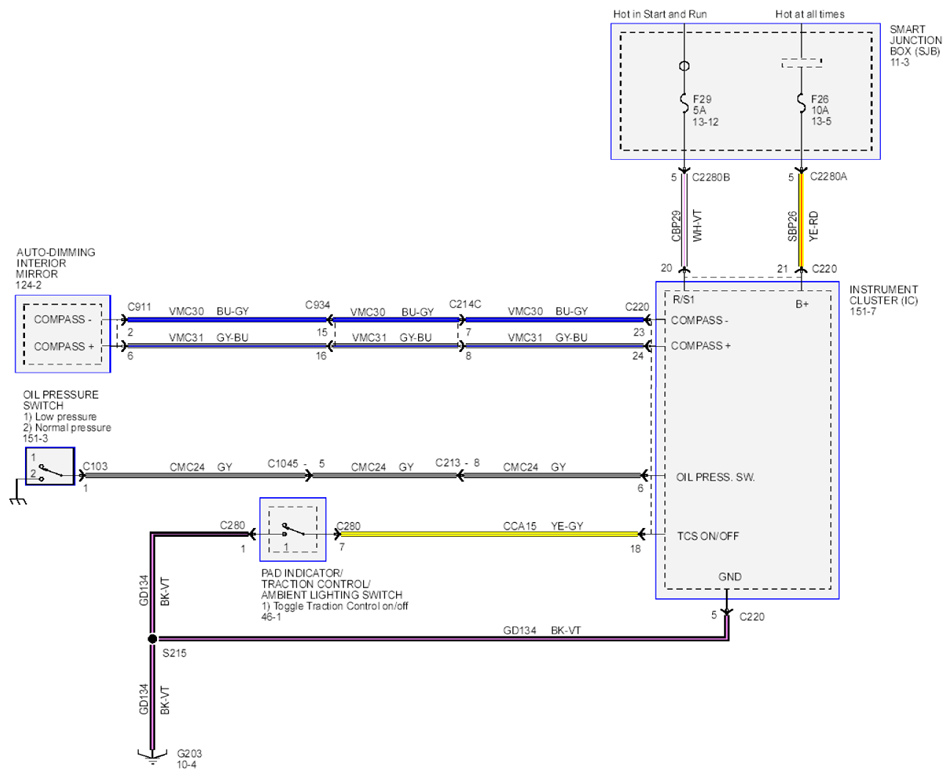

Fig 1: Instrument Cluster Circuit Diagram (1 Of 3)
G07861078Courtesy of FORD MOTOR CO.

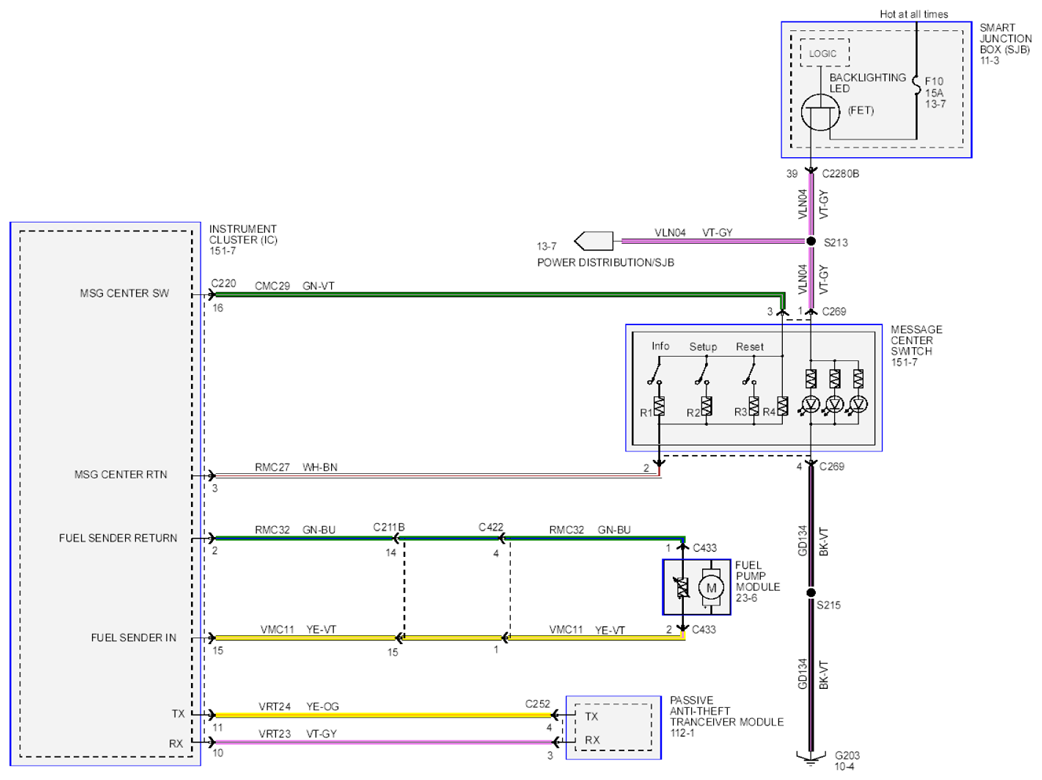

Fig 2: Instrument Cluster Circuit Diagram (2 Of 3)
G07861079Courtesy of FORD MOTOR CO.

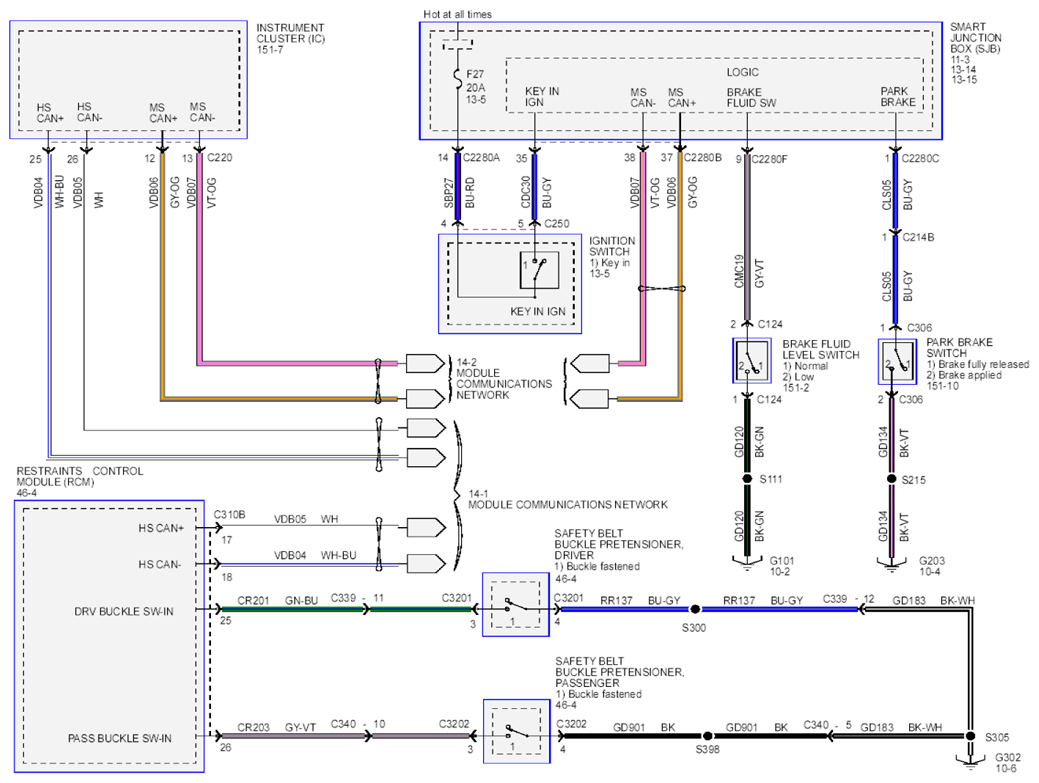

Fig 3: Instrument Cluster Circuit Diagram (3 Of 3)
G07861080Courtesy of FORD MOTOR CO.
