Horn_Cigar Lighter

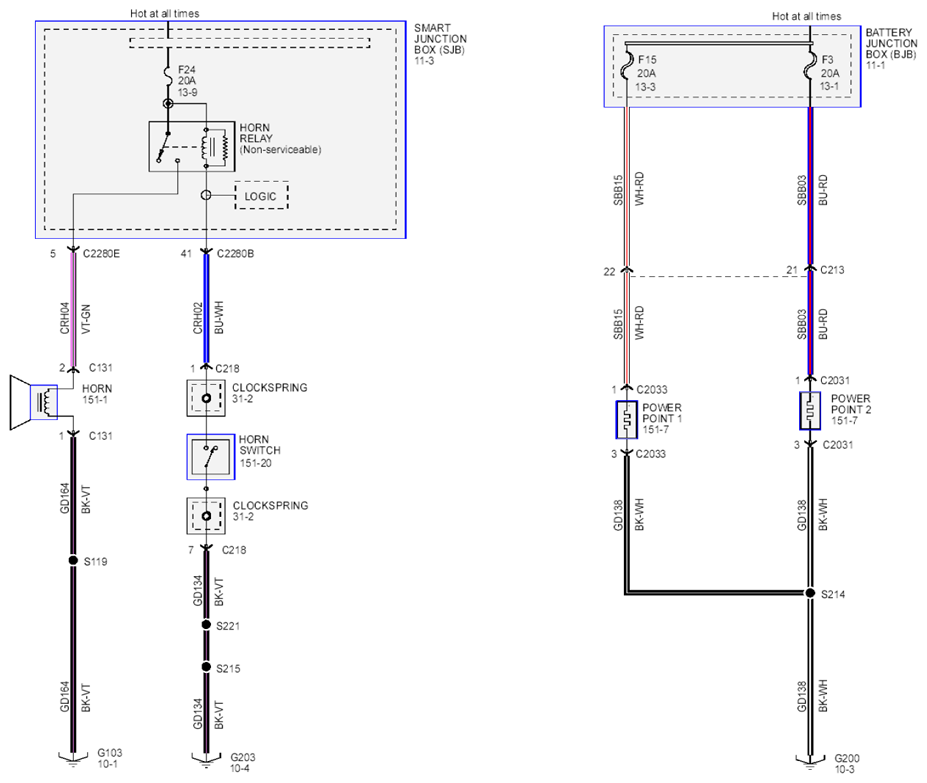

Fig 1: Horn And Cigar Lighter Circuit Diagram

G07861069

Courtesy of FORD MOTOR CO.
