OEM Wiring Diagrams: Grounds: G203

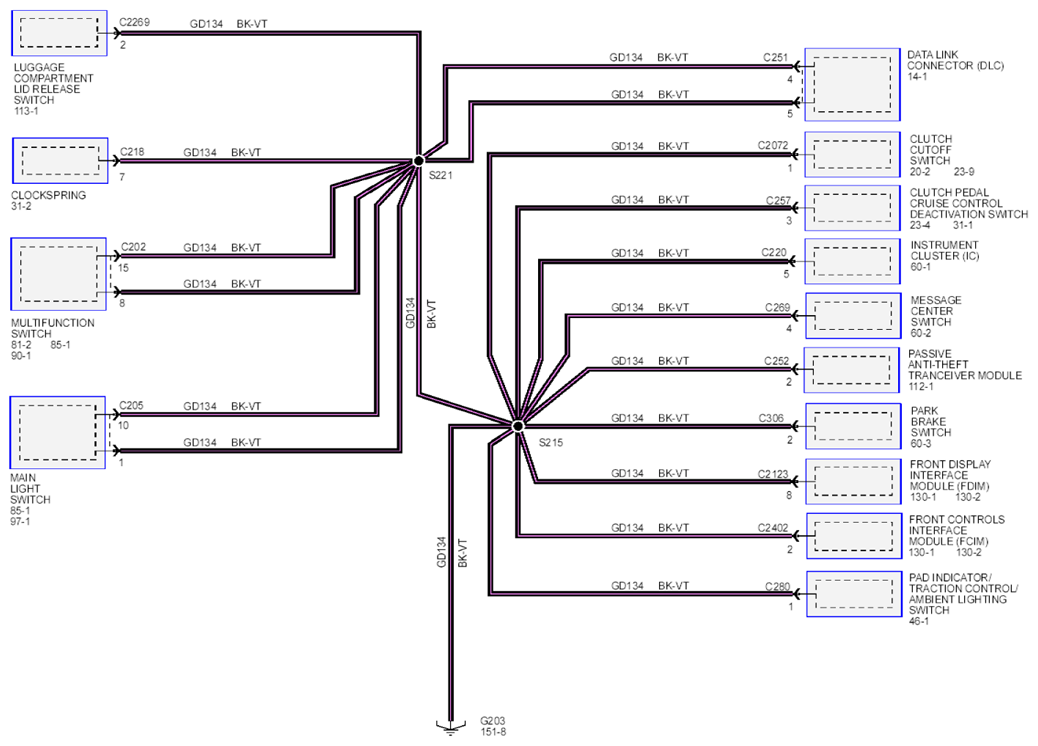

Fig 1: Ground Circuit Diagram - G203
G07861026Courtesy of FORD MOTOR CO.
