OEM Wiring Diagrams: Headlamps_Autolamps

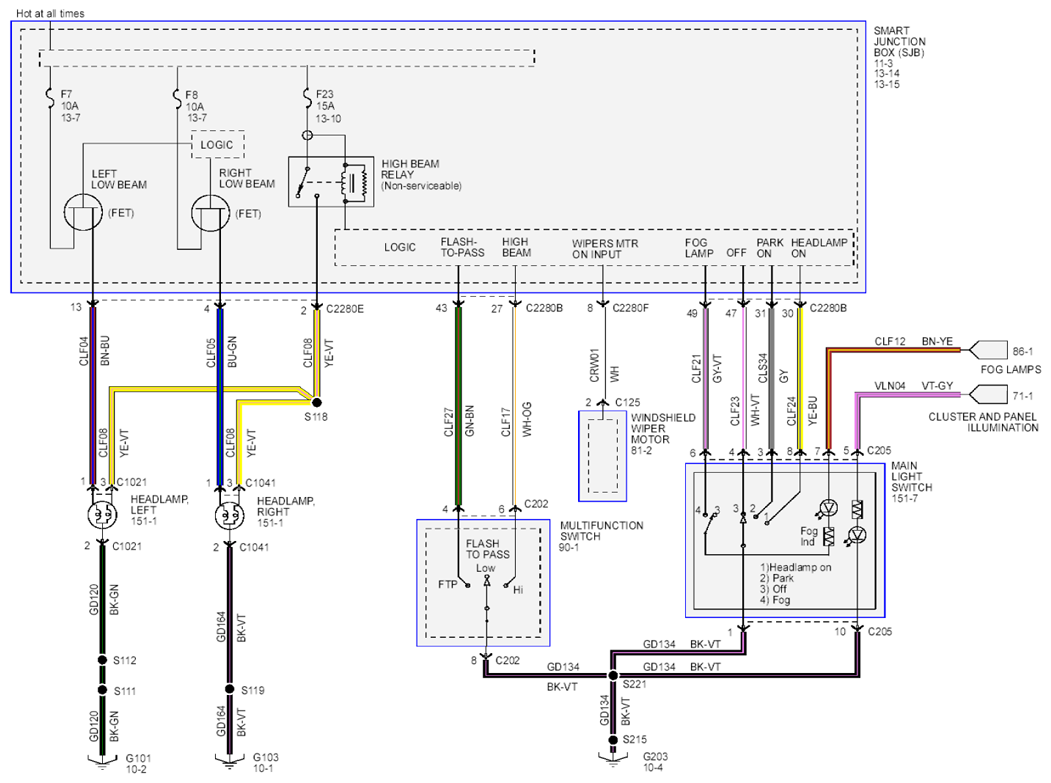

Fig 1: Headlamps And Autolamps Circuit Diagram

G07861084

Courtesy of FORD MOTOR CO.

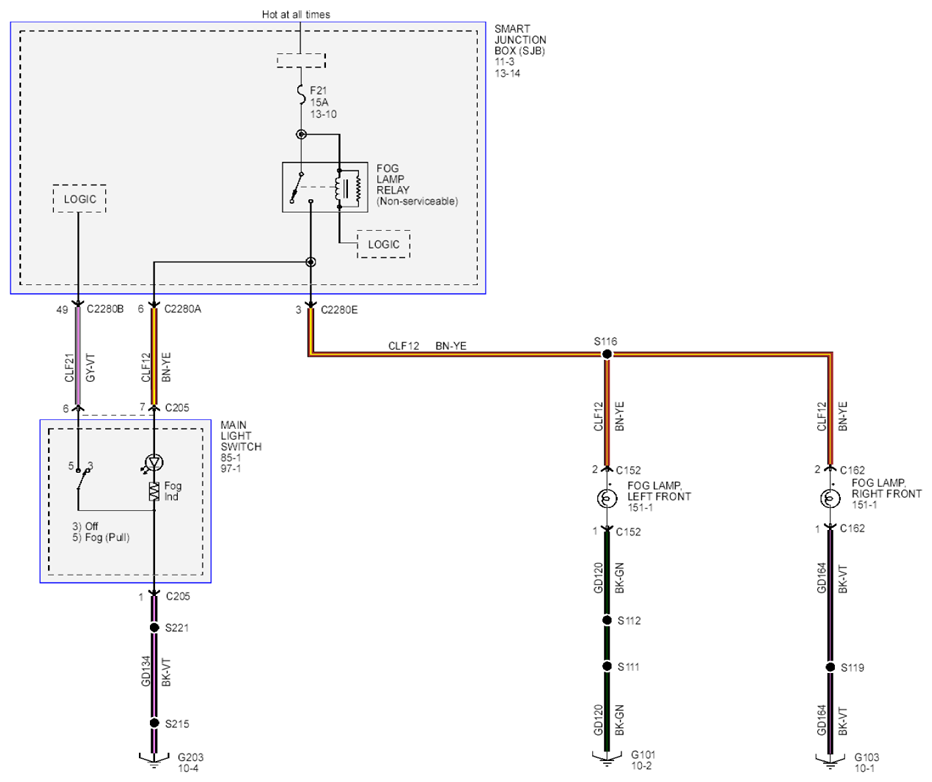

Fig 2: Fog Lamp Circuit Diagram

G07861085

Courtesy of FORD MOTOR CO.
