Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

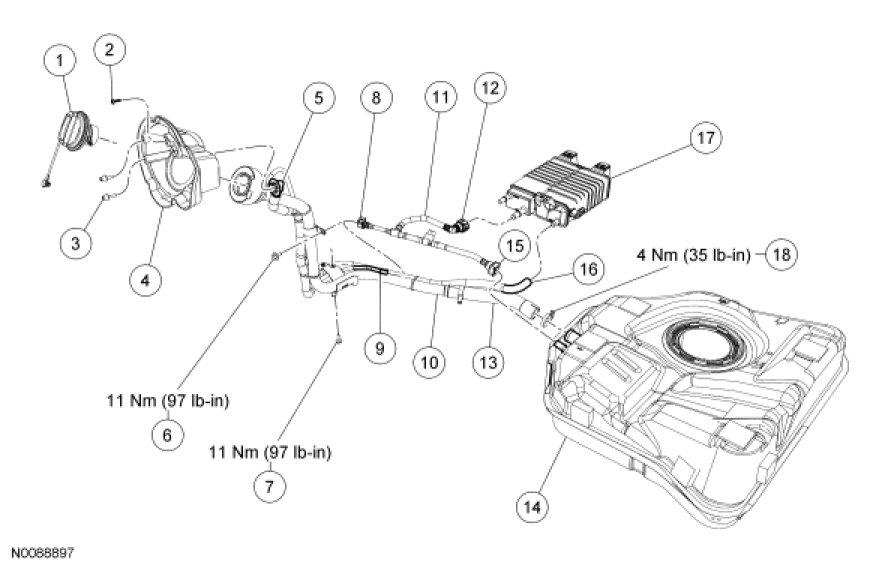

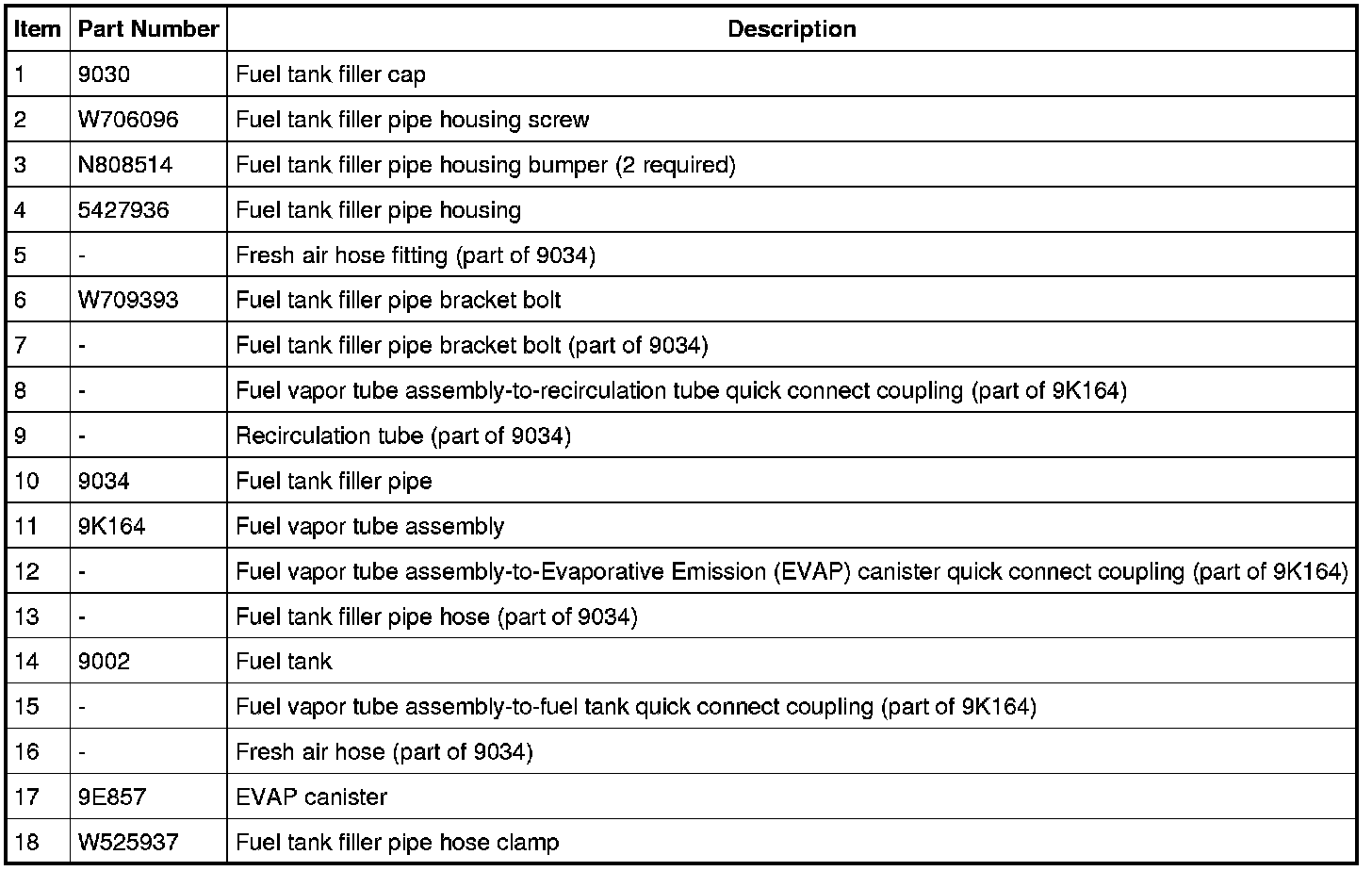

Fuel Tank Filler Pipe Assembly

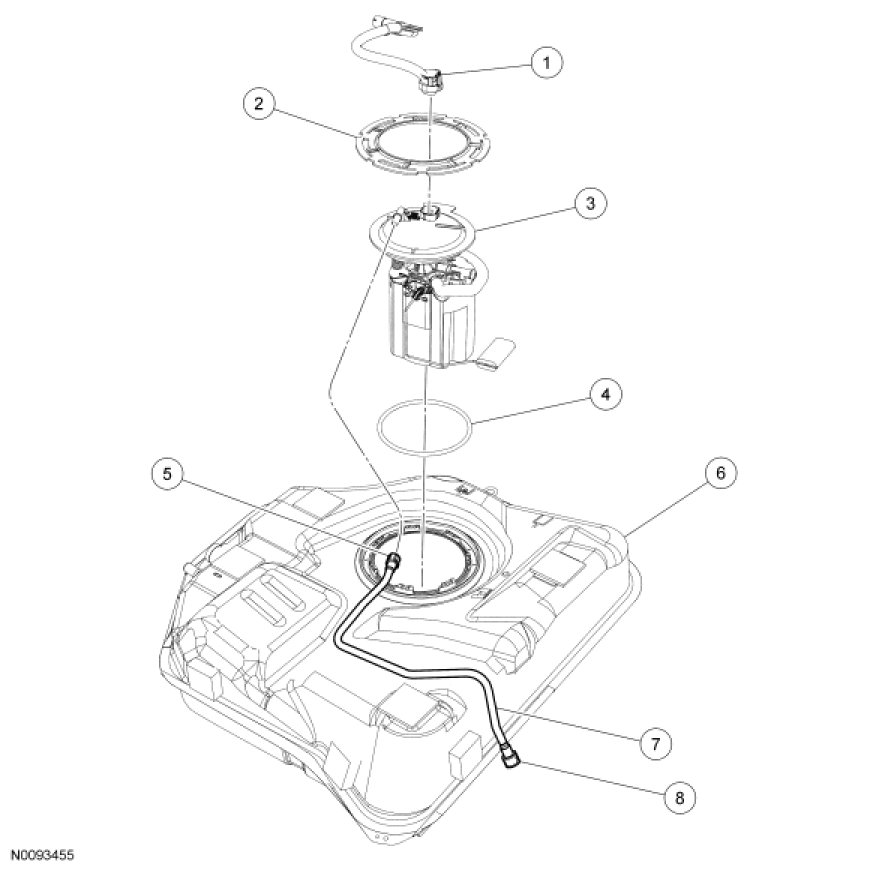

Fuel Tank Assembly

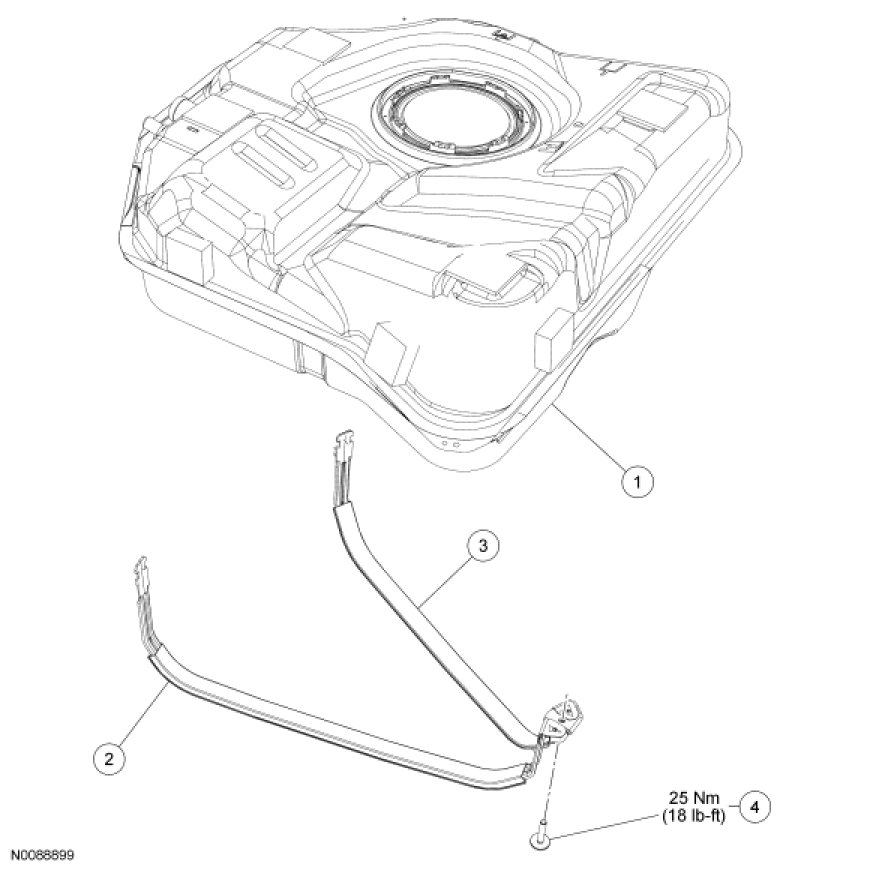

Fuel Tank Supports
