Quarter Panel Speaker




Quarter Panel Speaker









Removal and Installation

1. Remove the quarter trim panel. For additional information, refer to Quarter Trim Panel - 2-Door in Interior Trim and Ornamentation Quarter Trim Panel - 2-Door.

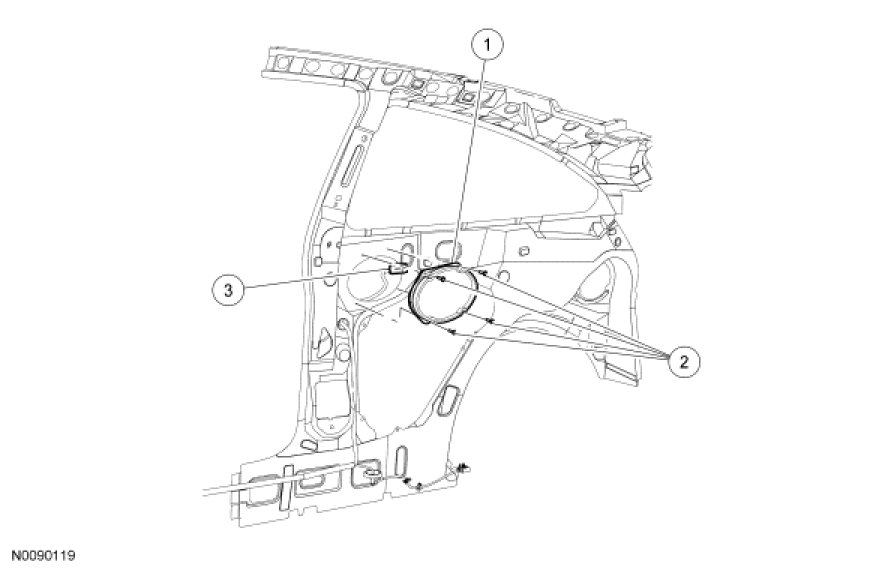

2. Remove the 4 screws and the quarter panel speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
