Door Speaker




Door Speaker

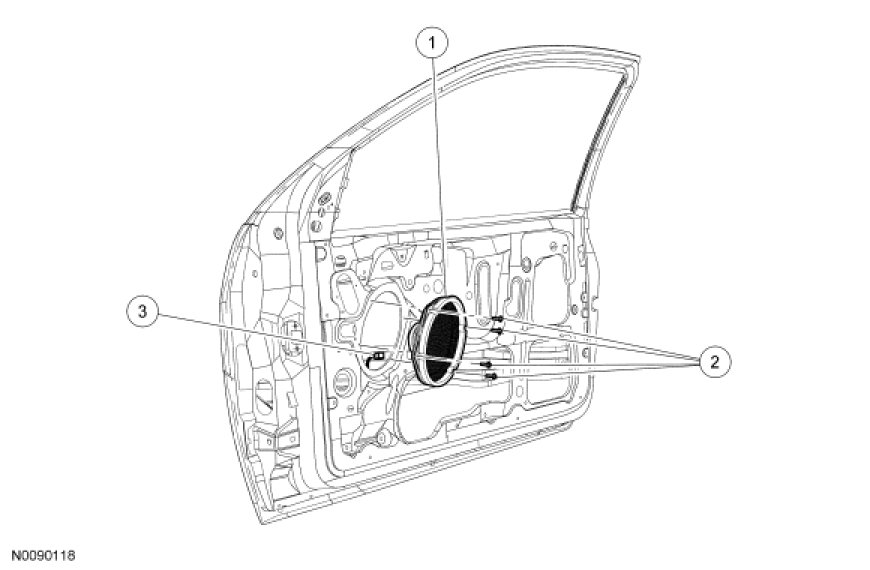

NOTE: RF door shown, all others similar.











Removal and Installation

1. Remove the front door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. Remove the 4 screws and the door speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
