Fuel Tank and Filler Pipe - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

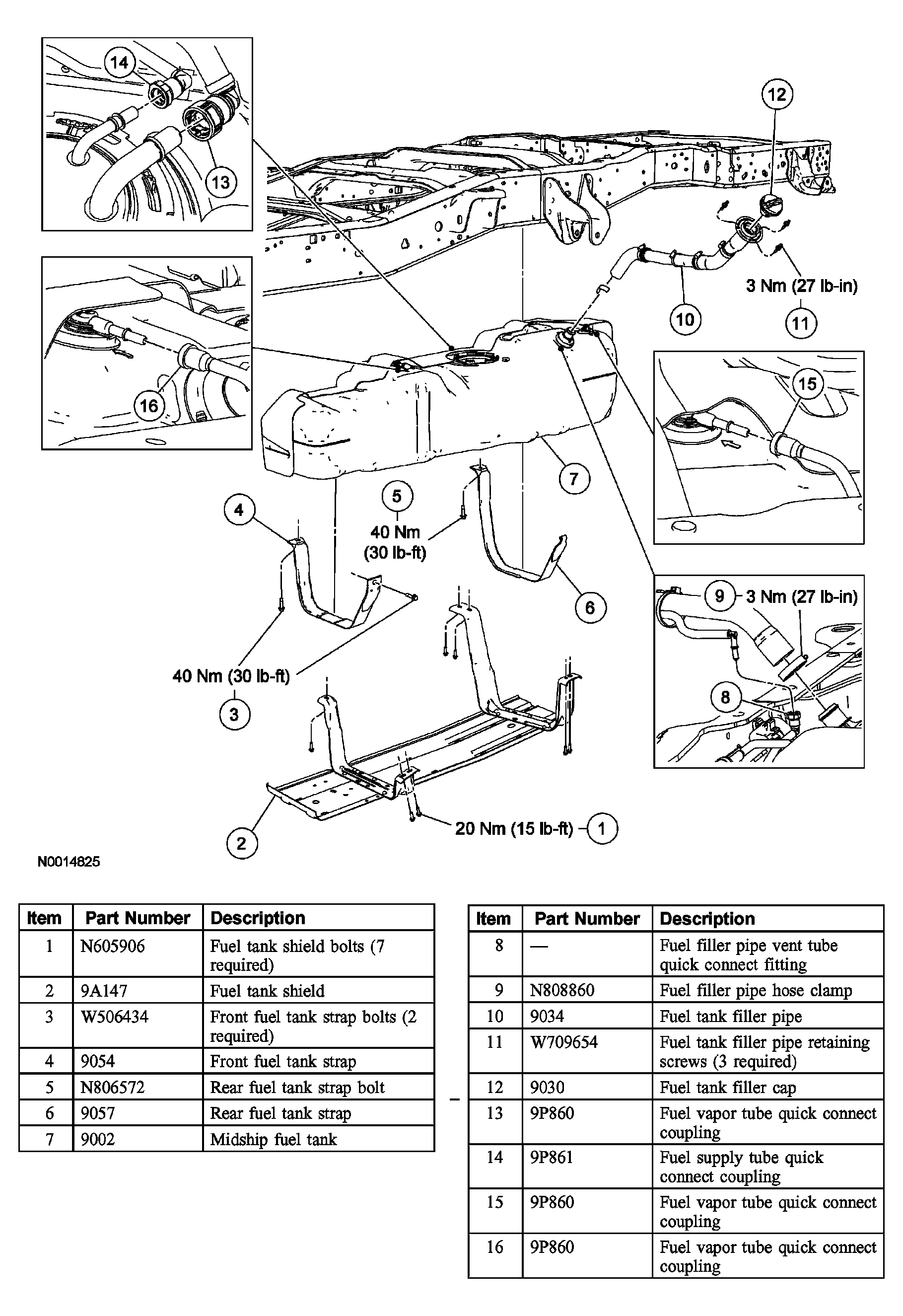

Fig 1: Exploded View Of Fuel Tank And Filler Pipe - Midship Fuel Tank

Courtesy of FORD MOTOR CO.

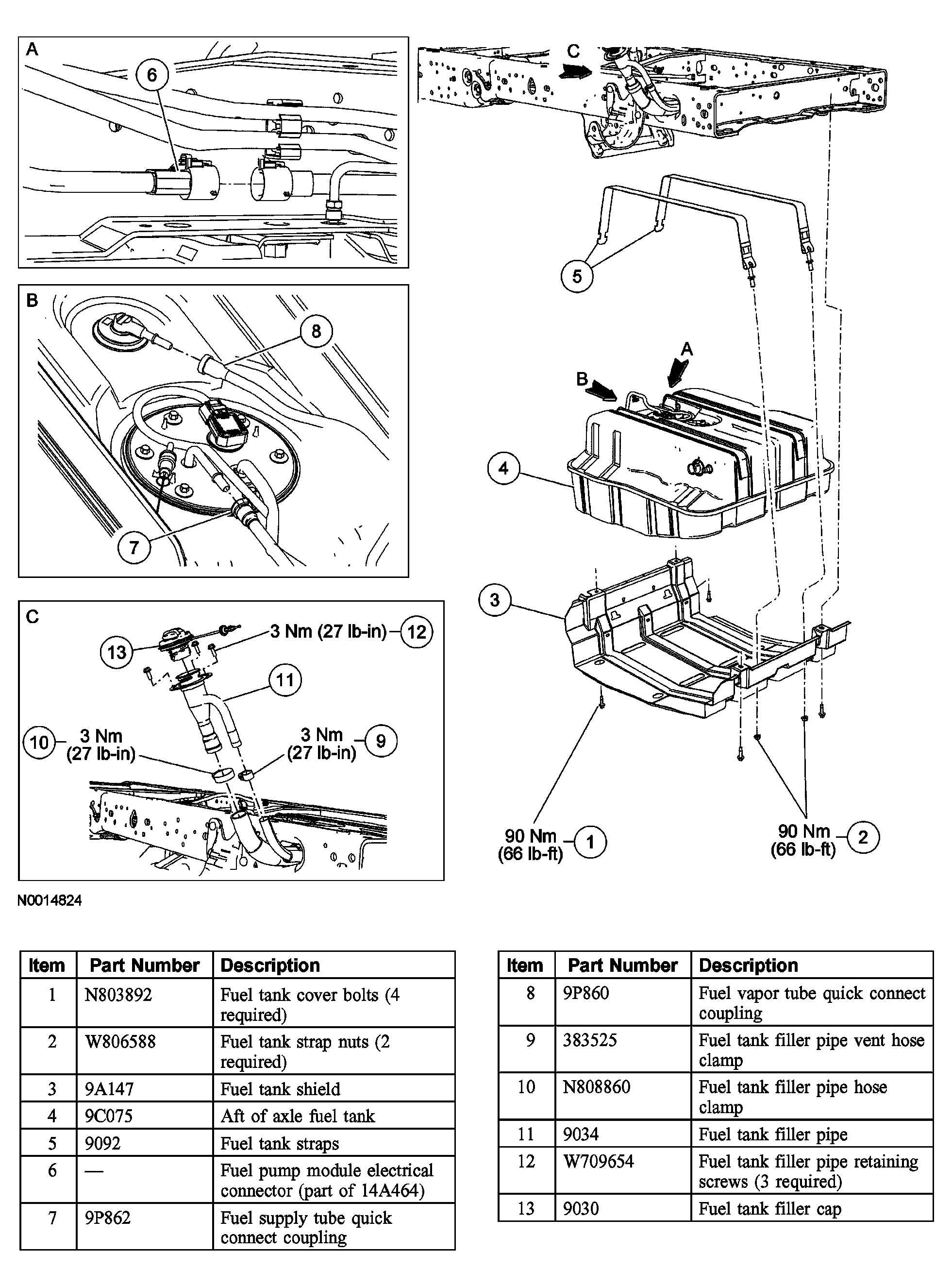

Fig 2: Exploded View Of Fuel Tank And Filler Pipe - Aft Of Axle Fuel Tank

Courtesy of FORD MOTOR CO.

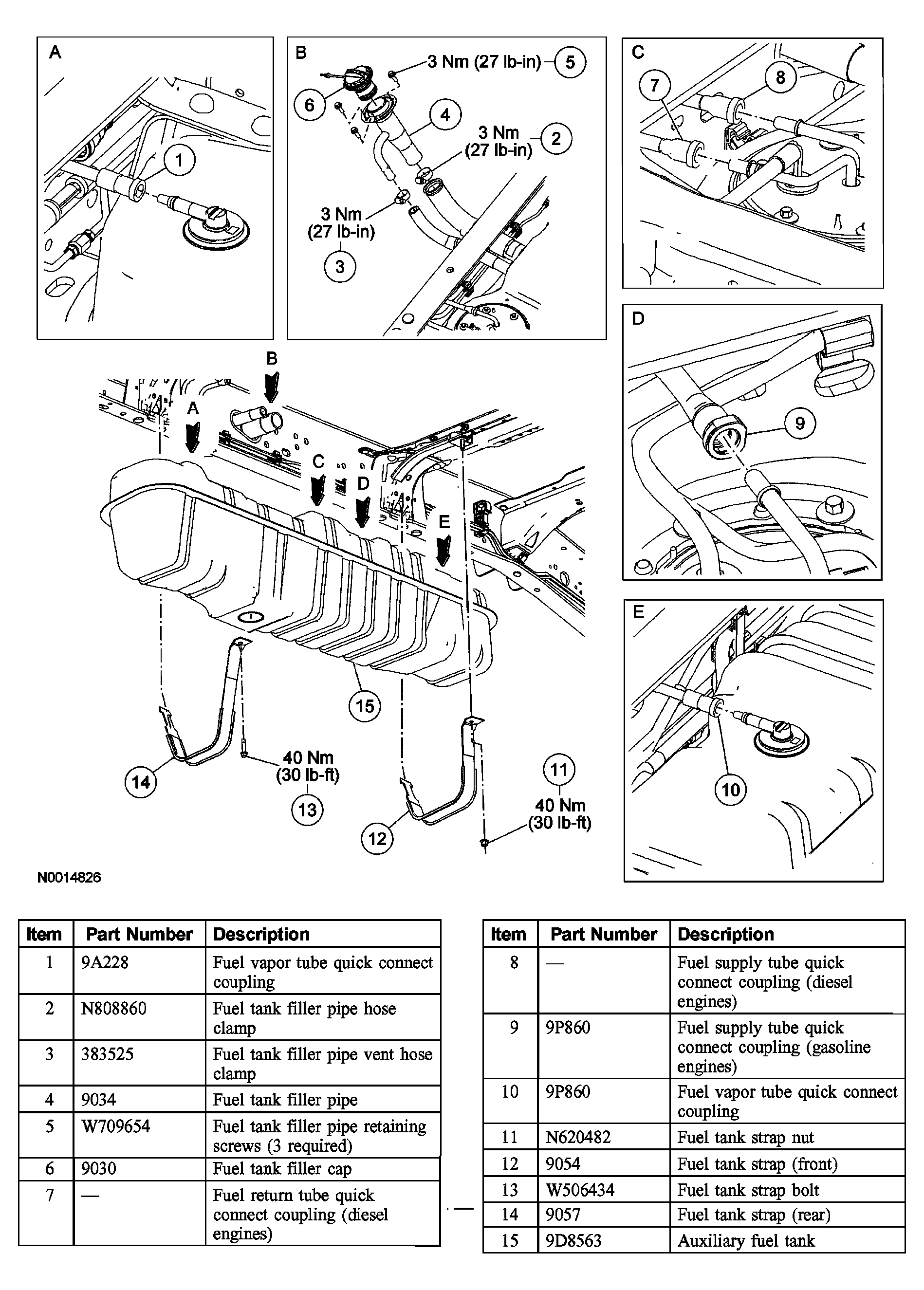

Fig 3: Exploded View Of Fuel Tank And Filler Pipe - Auxiliary Fuel Tank

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
