RH Turbocharger (View 5 of 6)

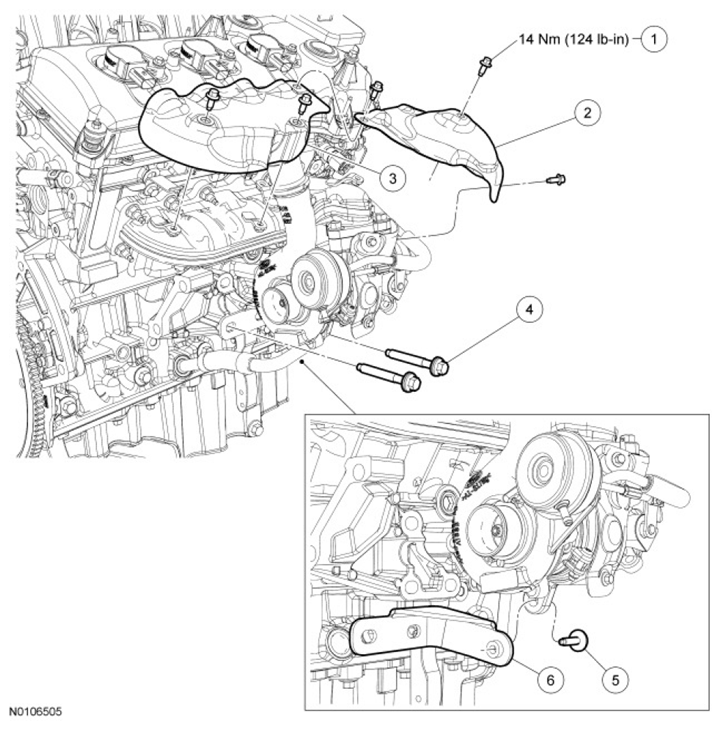

Fig 1: Exploded View Of RH Turbocharger With Torque Specifications (5 Of 6)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W713299	RH exhaust manifold heat shield bolt (5 required)
2	9A462	RH exhaust manifold heat shield
3	9N454	RH exhaust manifold heat shield
4	W503324	Lower RH turbocharger-to-cylinder block bracket bolt (2 required)
5	W714867	Lower RH turbocharger-to-turbocharger bracket bolt
6	17K377	Lower RH turbocharger bracket
