LH Turbocharger (View 3 of 3)

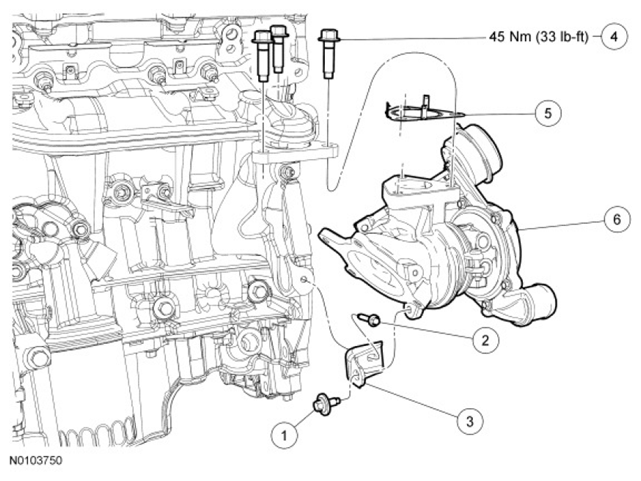

Fig 1: Exploded View Of LH Turbocharger With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W714863	Lower LH turbocharger bracket-to-turbocharger bolt
2	W503280	Lower LH turbocharger bracket-to-cylinder block bolt
3	9P463	Lower LH turbocharger bracket
4	W712806	Exhaust manifold-to-LH turbocharger bolt (3 required)
5	9A457	LH turbocharger-to-exhaust manifold gasket
6	9G438	LH turbocharger
