Instrument Panel Dimmer Switch: Notes

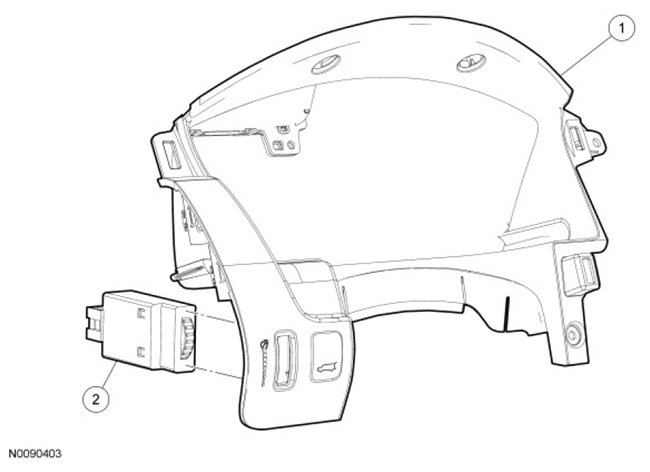

Fig 1: Exploded View Of Instrument Panel Dimmer Switch
G07465632Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 74044D70 Instrument cluster finish panel
2 11691 Instrument panel dimmer switch
